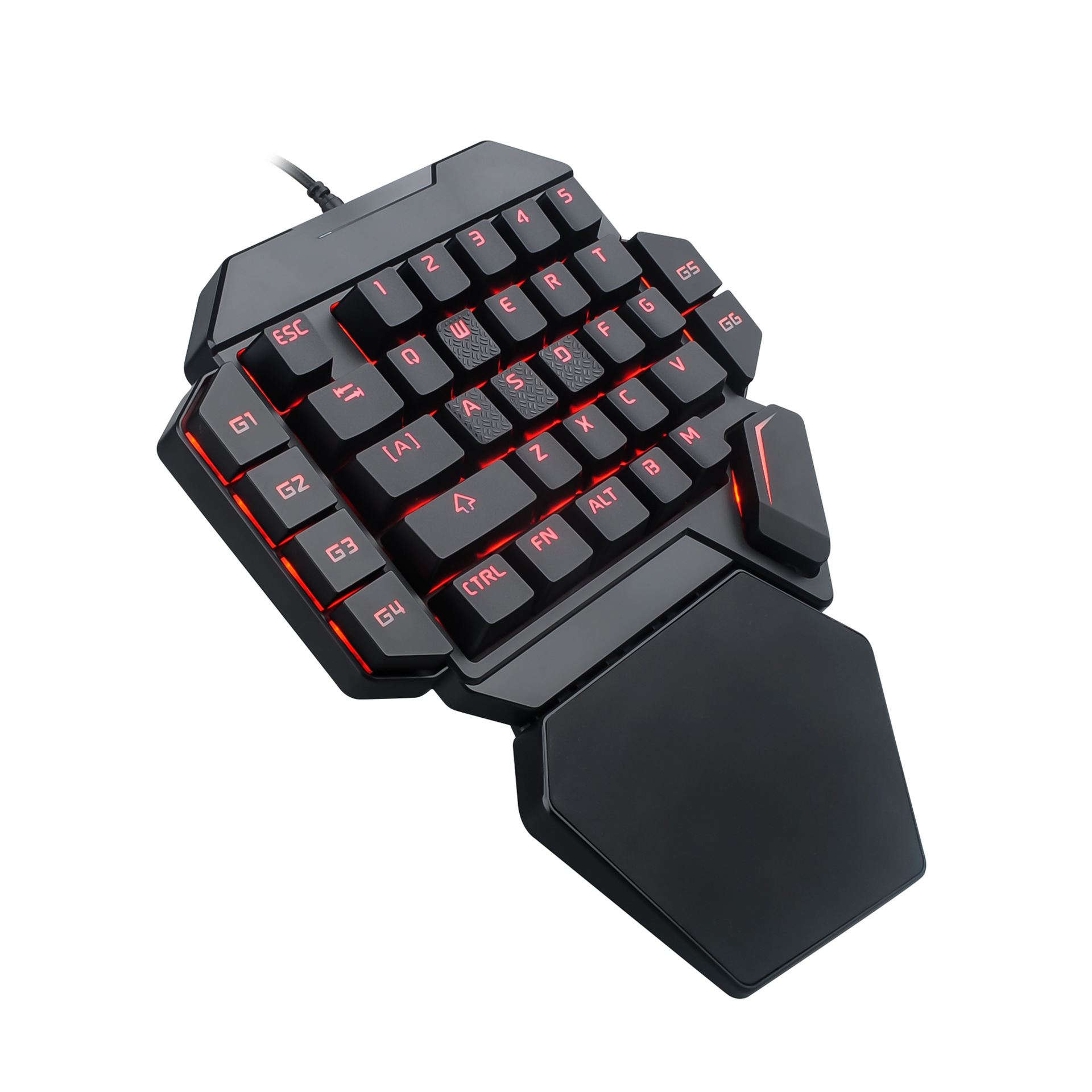

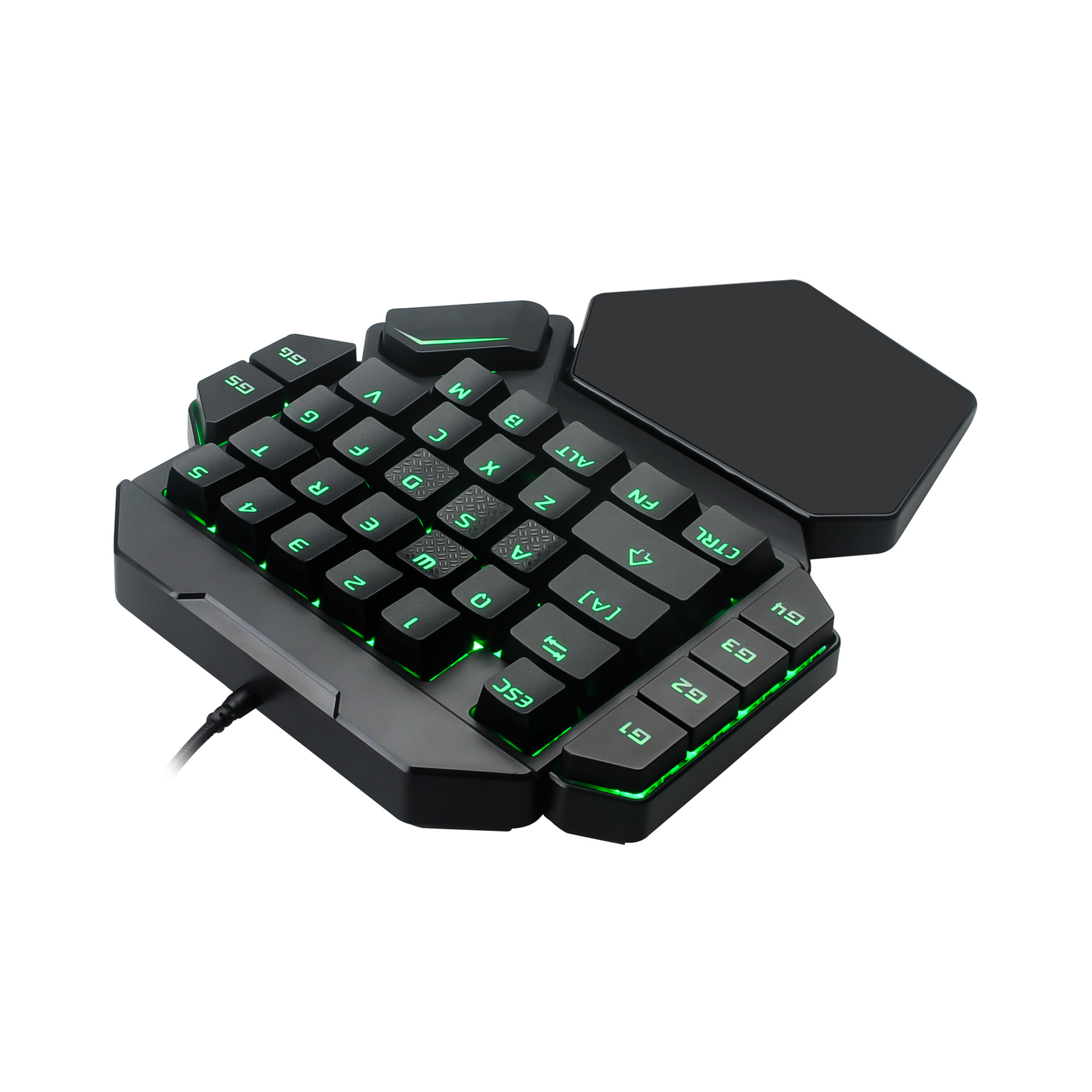

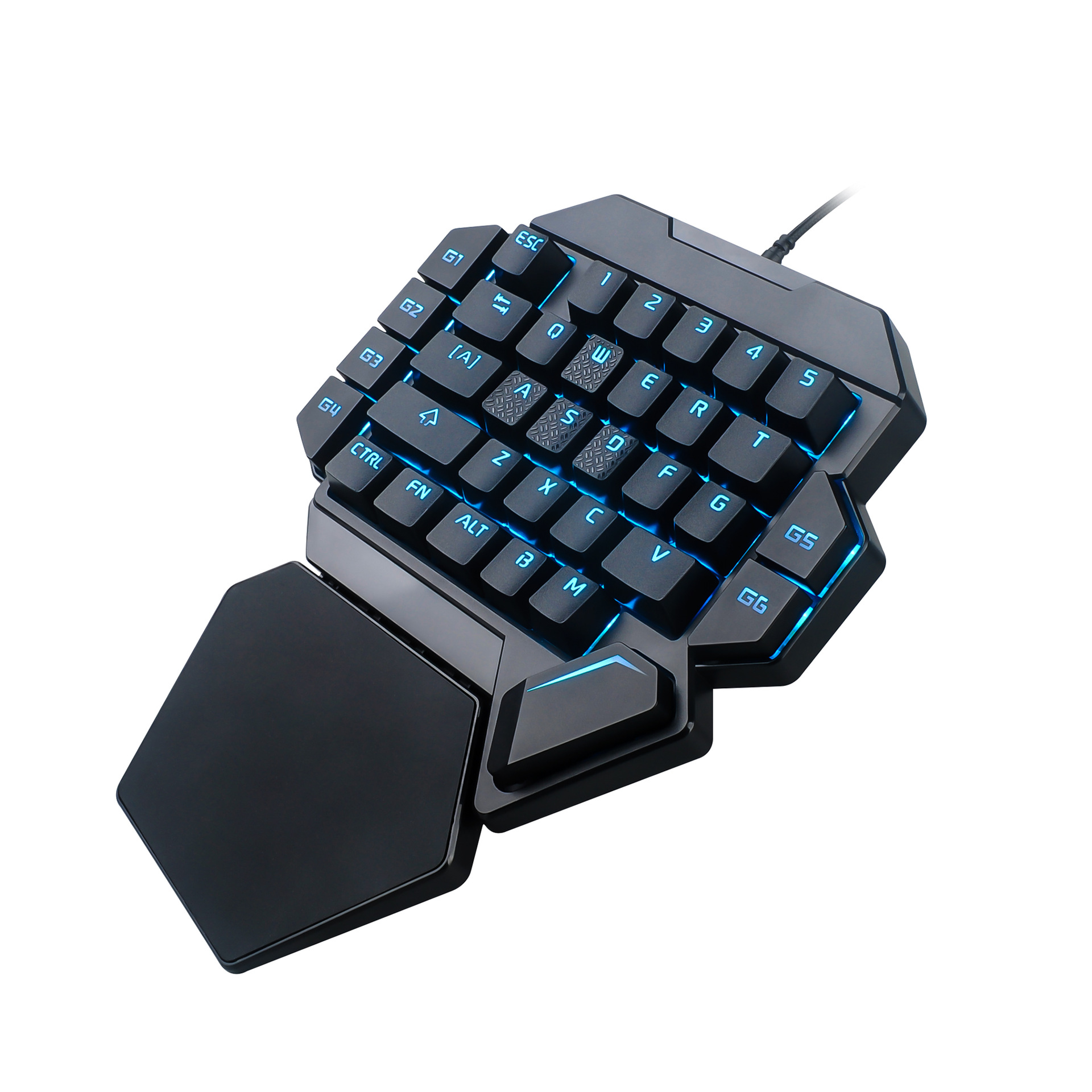

K50 single-hand game mechanical keyboard instruction manual try to connect the K50 single-handed mechanical keyboard to the USB interface of the computer itself to avoid external devices such as adapter cable. When the product is not in use, do not store the product in the sun exposure or humid and dark environment for a long time to avoid damage to the internal components of the keyboard and affect normal use.
Product specifications:
product Name: mechanical one-handed keyboard
product Model: K50
product Size: 233*182 * 38mm
product Weight: 382g
button quantity: 35key
transmission method: wired USB
button life: 5000W Times
operating temperature: 0oC to 40oC
humidity: ≤ 85%
operating voltage: 5V ± 0.5 work current: ≤ 350mA (MAX) applicable Systems: Win2000,Win XP, Win ME, Vista,Win7,Win8,WIN10,
product features: it adopts mechanical switch used in professional game field and has a radian button layout, which conforms to ergonomics. The concave key cap design makes the keyboard feel comfortable when tapping, and the input is sensitive to reduce errors.
FN combination function:
FN function | combination button | function | description |
FN+ | 1 | F1 | ordinary button F1 |
2 | F2 | ordinary button F2 | |

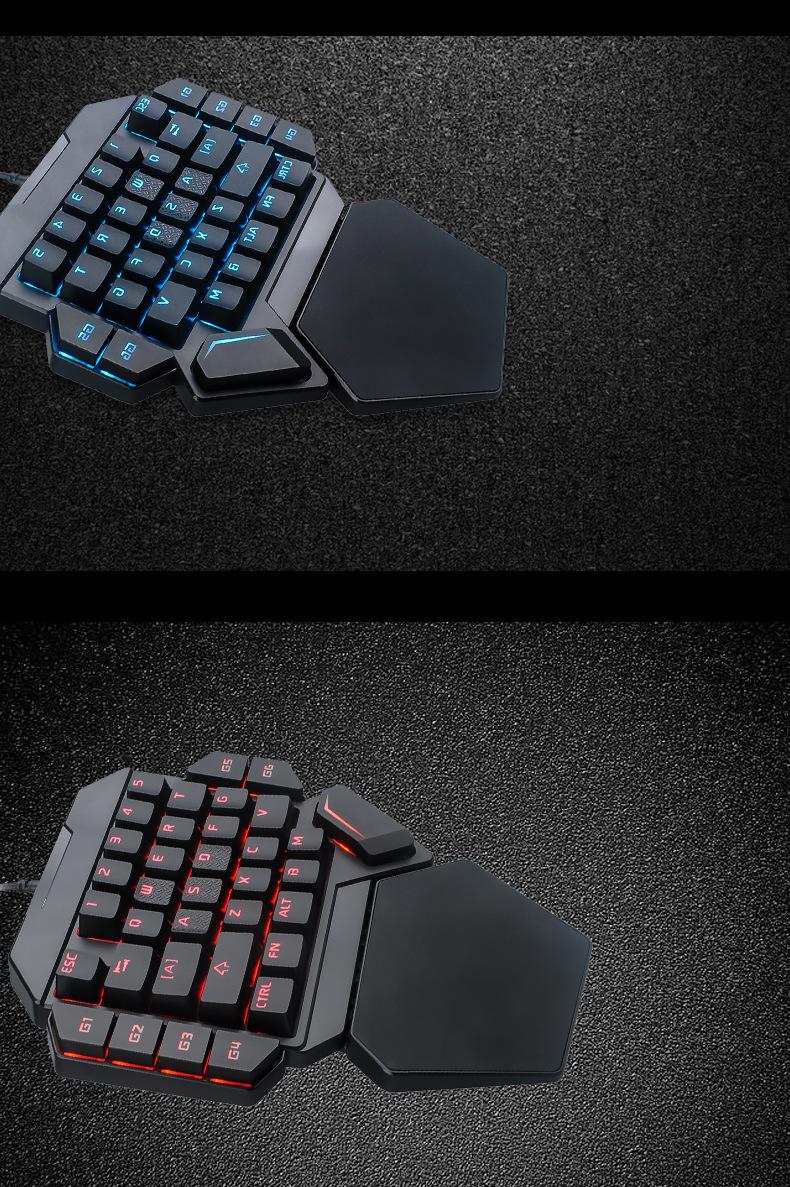

3 | brightness plus | 0%-30%-60%-100%, 4 gears in total adjustable | |
4 | brightness reduction | 0%-30%-60%-100%, 4 gears in total adjustable | |

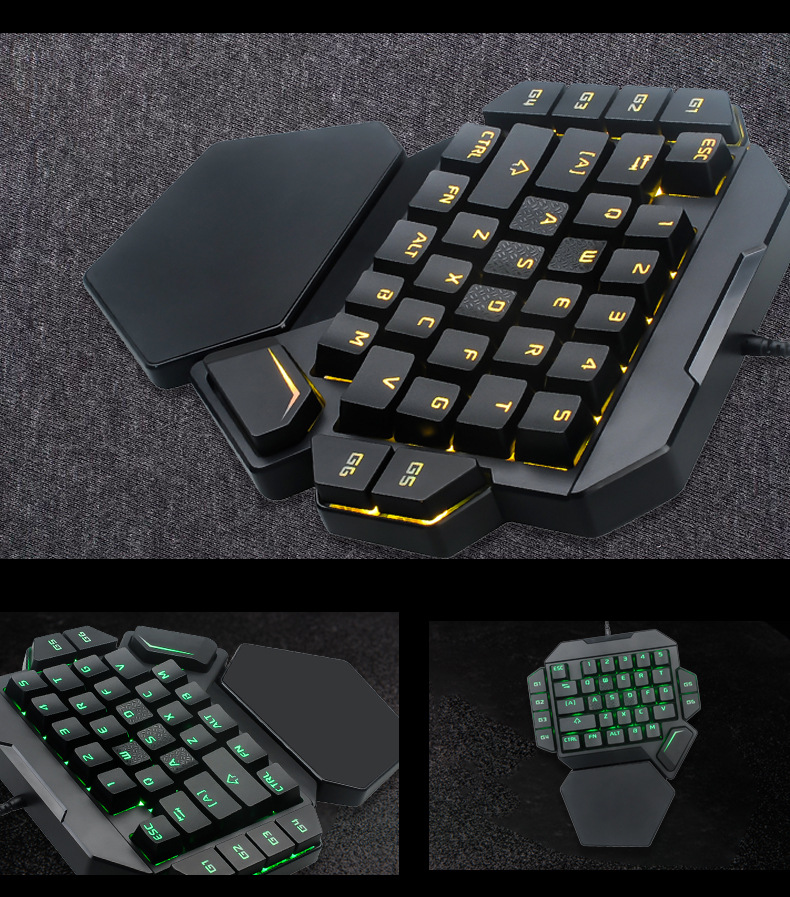

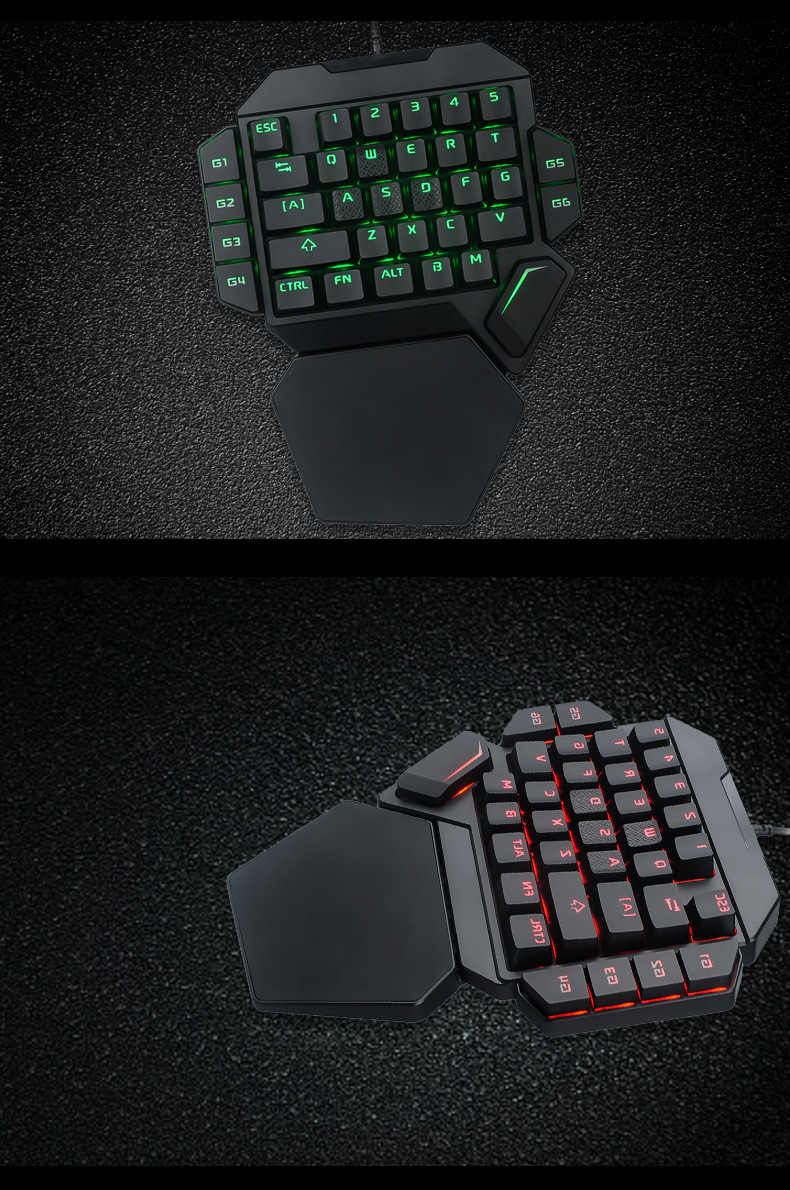

5 | color switching | the default color is red, orange, yellow, green, green, blue, purple, and white. | |
TAB | light switching | the judgment of light, ripples, drift with the flow, snow without trace, breathing |
macro recording
1)G1-G6 if there is no recording content, the default value is F1,F2,F3,F4,F5,F6.
2) If there is no recording content in G1: Press FN + G1 to enter the recording state. When G1 light flashes, you can enter the recording content, after the input is completed, press FN + G1 to complete the recording. After the G1 light returns to the normal mode. Press FN + G1 to clear the recording content and turn it into F1 function.
G2-G6 record and clear the recording content as above.
