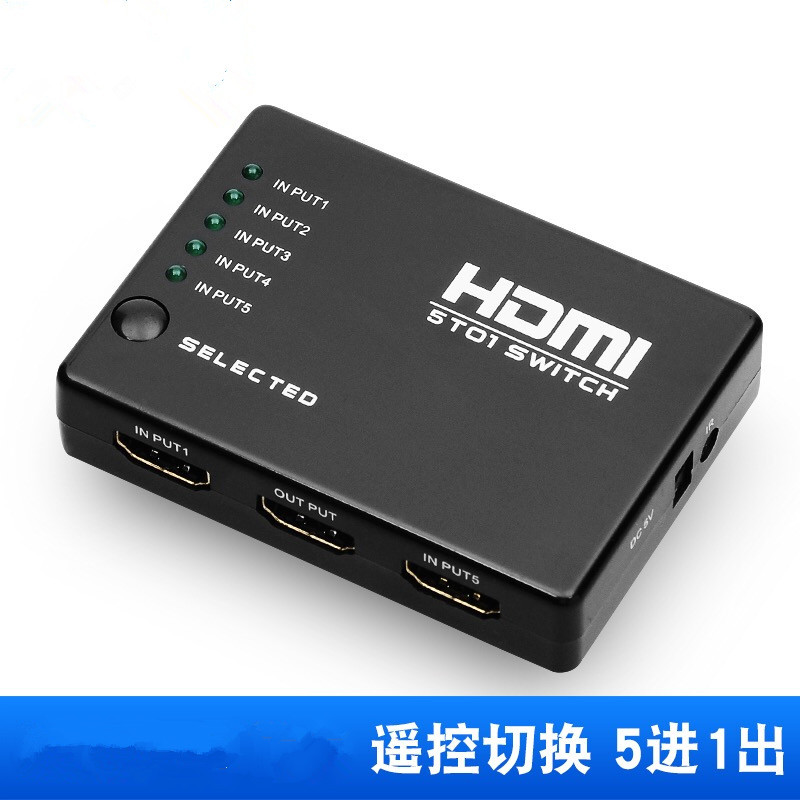

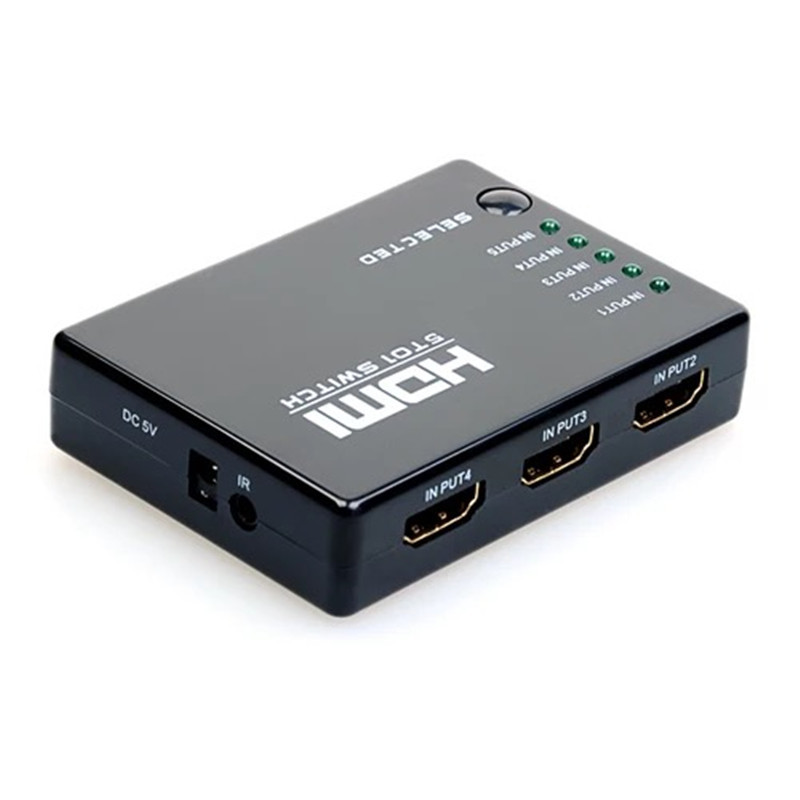

HDMI switcher 5 in 1 out distributor 1.4 Switch high clearness magnifying with remote control 5 in 1 out
[Scope of application]] This is a small high-performance HDMI switcher. It has special design and exquisite appearance. Multiple inputs are simultaneously connected to multiple HD video sources, such as satellite systems and HD DVD players. The output sends high-definition audio/video signals to a high-definition display. It has good compatibility and is compatible with HD-DVD, satellite TV, PS3,Xbox360... Resolution up to 1080p, it not only has button loop switching, but also includes remote control switching and intelligent identification switching, that is, as long as you switch power on the signal source device, this switch will automatically respond and it. The standard equipment includes infrared reception extender, which is convenient and exquisite.[Product features]]1. Support HDMI 1.4 3D function. Support 1080p, support 12-bit pixels.2. Support video amplification signal bandwidth up to: 2.5Gbps3. Manual switching4. Support 25 meters long-distance transmission at both ends (power supply is required)5. Compatible with HDCP devices6. Passed FCC CE certification7. Support HD video, excellent clear picture

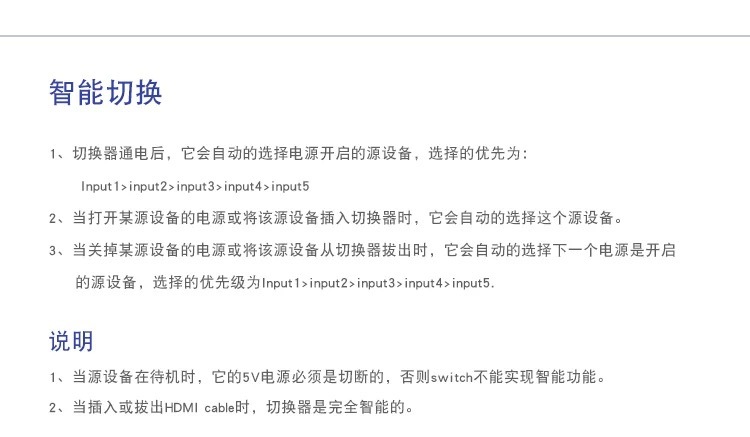

Intelligent features:1. After the switch is powered on, it will automatically select the source device with the power on. The priority selected is Input1>input2>input3>input4>input52. When a source device is powered on or plugged into the switcher, it automatically selects the source device.3. When the power supply of a source device is turned off or the source device is pulled out of the switch, it will automatically select the source device whose next power supply is turned on. The selected priority is: input1> input2>input3>input4>input5
Description:1. When the source device is in standby, its 5V power supply must be cut off, otherwise switch cannot realize intelligent function.2. When the HDMI cable is inserted or pulled out, the switcher is intelligent.

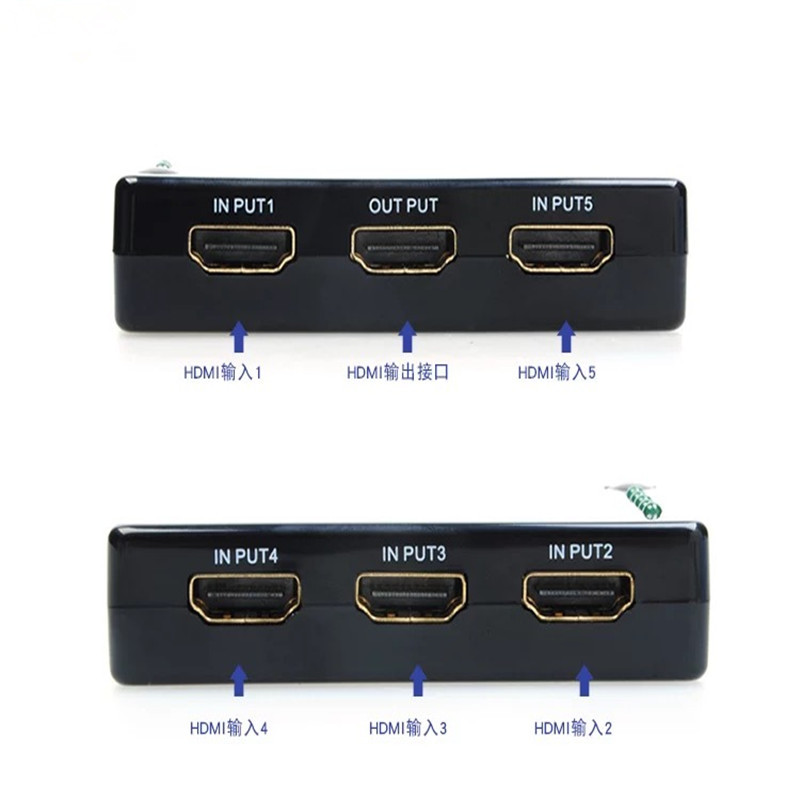

[Package content]]One HDMI distributorOne remote controlIR Infrared receiving head 1[Technical specifications]]1. Signal input/outputInput video signal: 0.5-1.0 volts p-pInput DDC signal: 5 volts p-p (TTL)Maximum range of single-channel connection signal: 1920x 1200, 1080pOutput video signal: HDMI1.3b 3D + HDCP1.0/1.12. Support video formatsVGA:640x480,800x600,1024x768,1920x1200DTV/HDTV:480i/576i/480p/576p/720p/1080i/1080P3. Digital signal input/output4. Operating frequencyFrequency Up to250MHzField frequency 60HzVideo amplification bandwidth 2.5Gpbs/250MHzHD support (HDTV)Interlaced scan (50 & 60Hz) 480i,576i,1080iProgressive scan (50 & 60Hz) 480p,576p,720p,1080p5. Product volumeSize (length-width-height) 49MM * 50MM * 13MMWeight (net weight) 46.7g6. Rights and responsibilitiesLimited liability warranty within one year (no more than maintenance scope)7. Application EnvironmentOperating temperature: 0 ℃ to +70 ℃Operating humidity 10% to 85% RH (not concentrated)Storage Temperature-10 ℃ to +80 ℃Storage humidity 5% to 90 % RH (not concentrated)8: Other featuresHDMI connector: Class A 19-pin female connector
......................................................................................................................................................................................................................................................................................................................................
