Product parameters

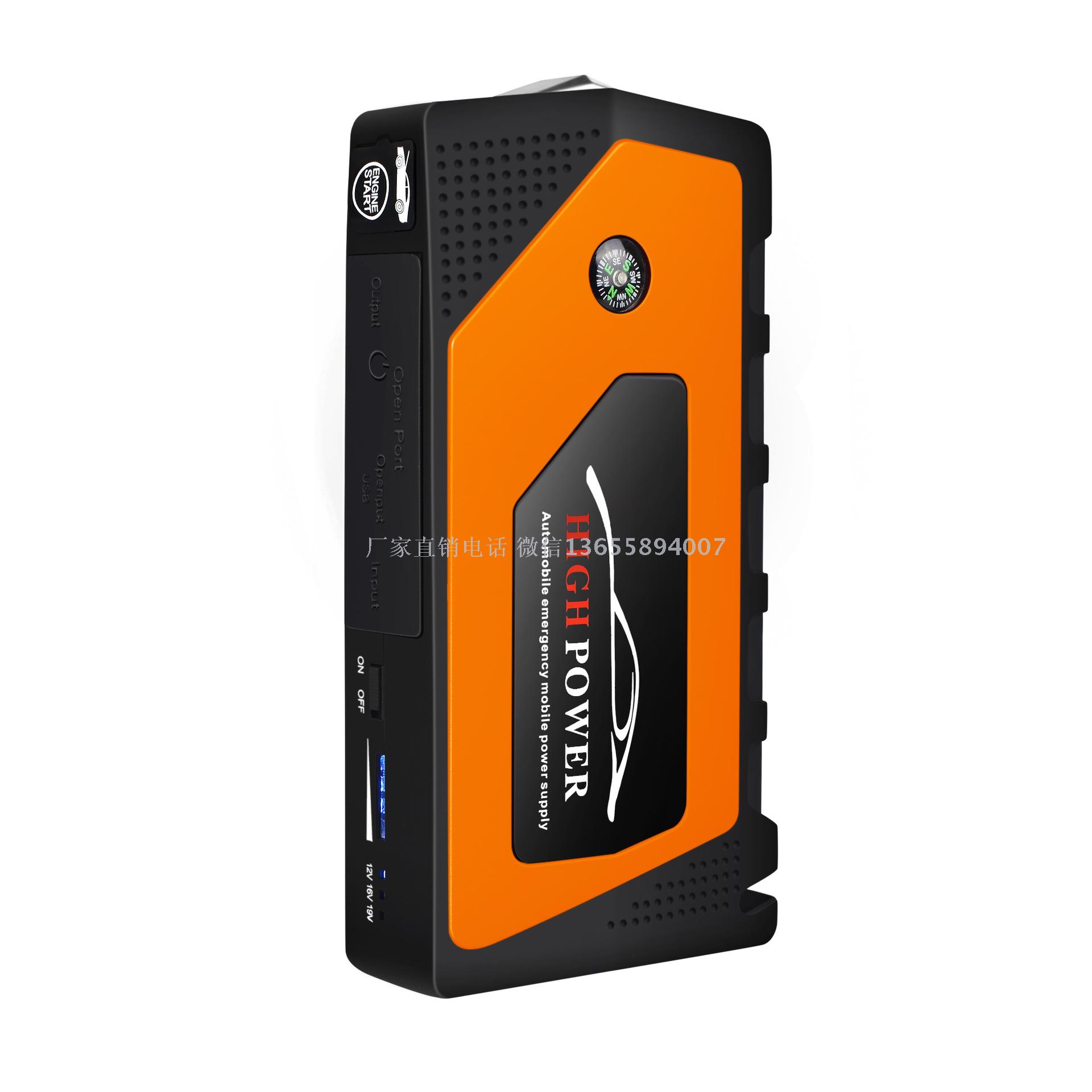

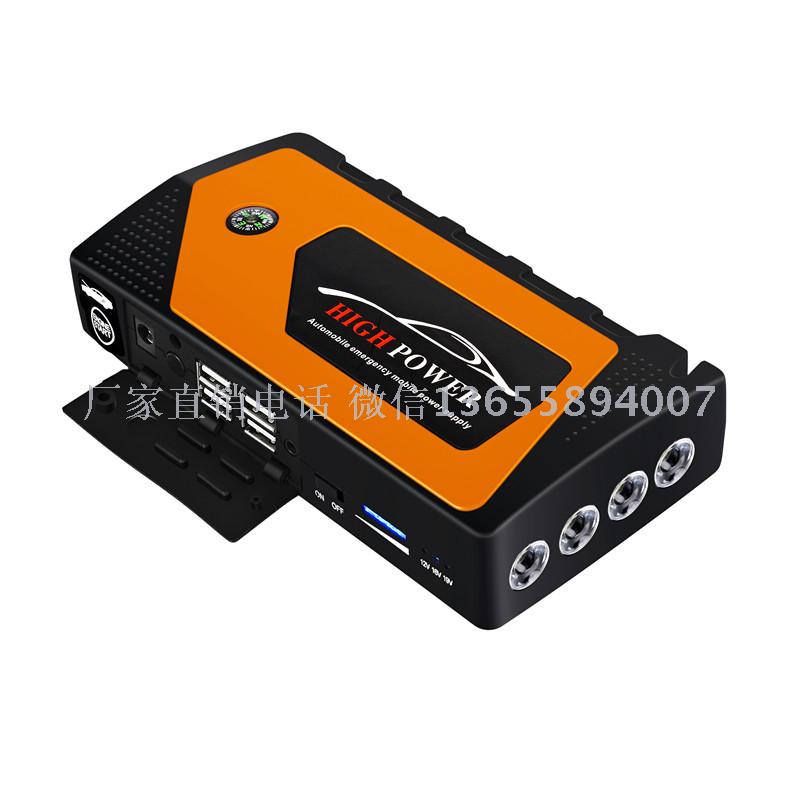

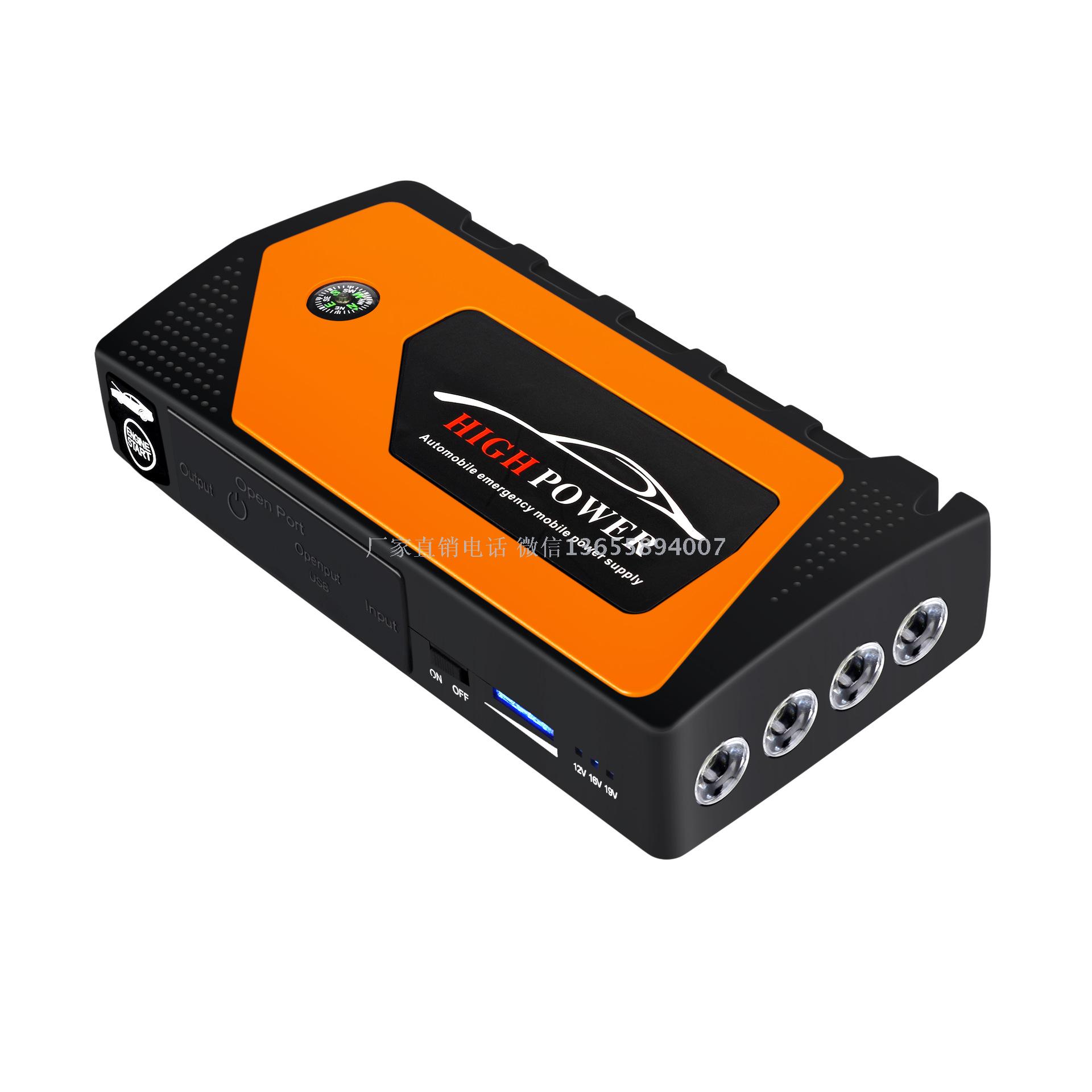

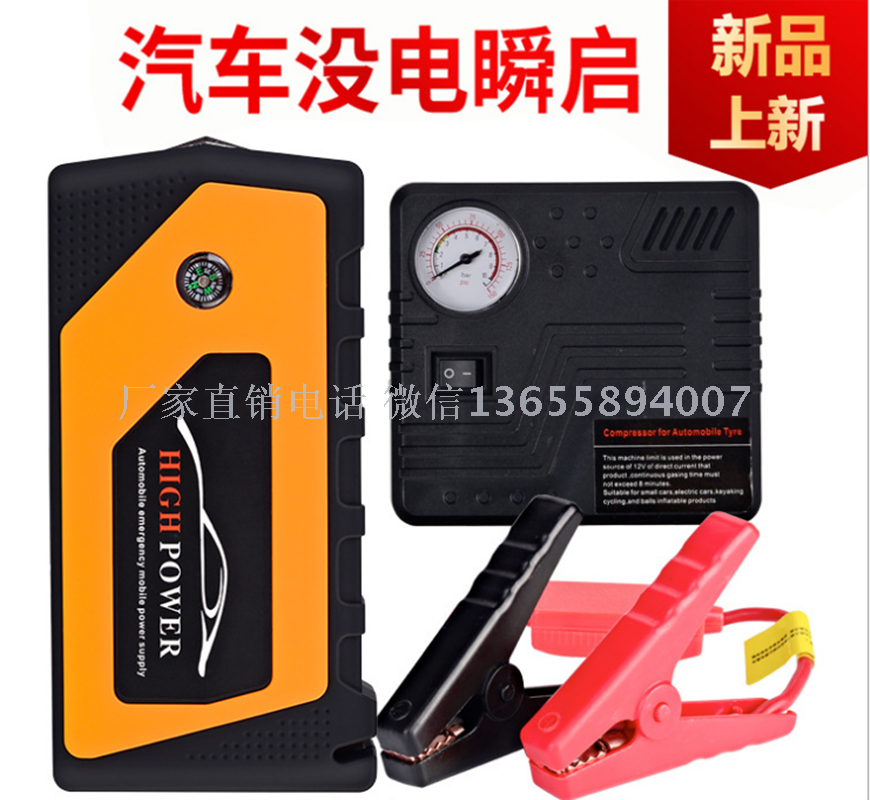

Product model: JX28 automobile emergency power supply
Battery type: polymer lithium battery cell
Power supply size: 165*83*32MM
capacity : 18000 mah
Rated input: 15V/1A
Rated output: 5V/2A 12 v / 1 a 16 v / 2 a 19 v / 3.5 A 12V/300A(car start output)
Starting current: 300A
Peak current: 600A
Charging time: 3 hours
Protection function: short circuit, overcharge, overdischarge protection function

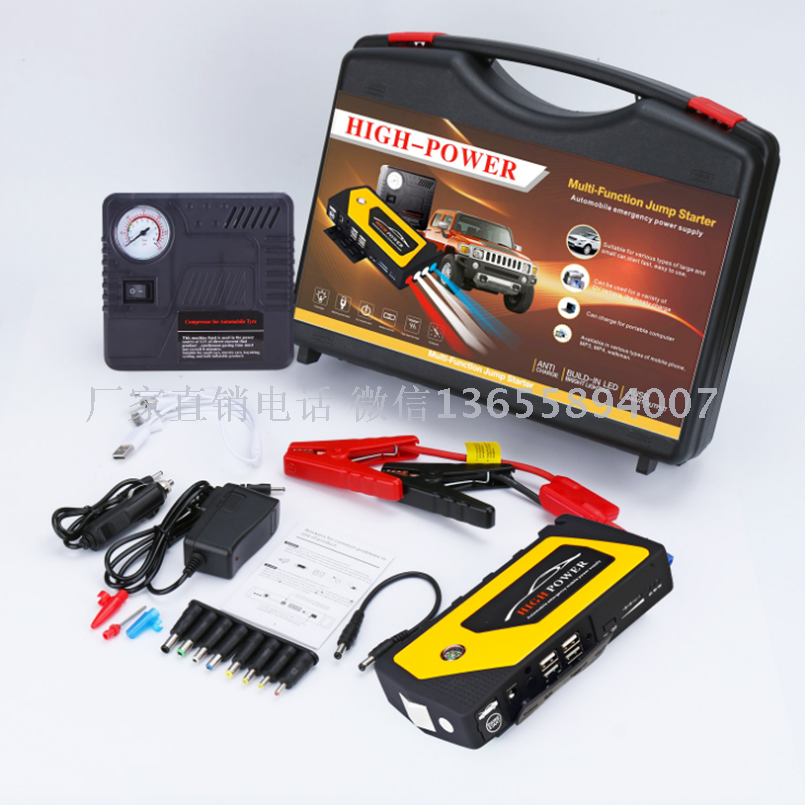

List of accessories: fire line 1, home charger 1, car charger 1, one tow four mobile phone connector 1, computer connector 8, instruction manual 1, tool kit 1.

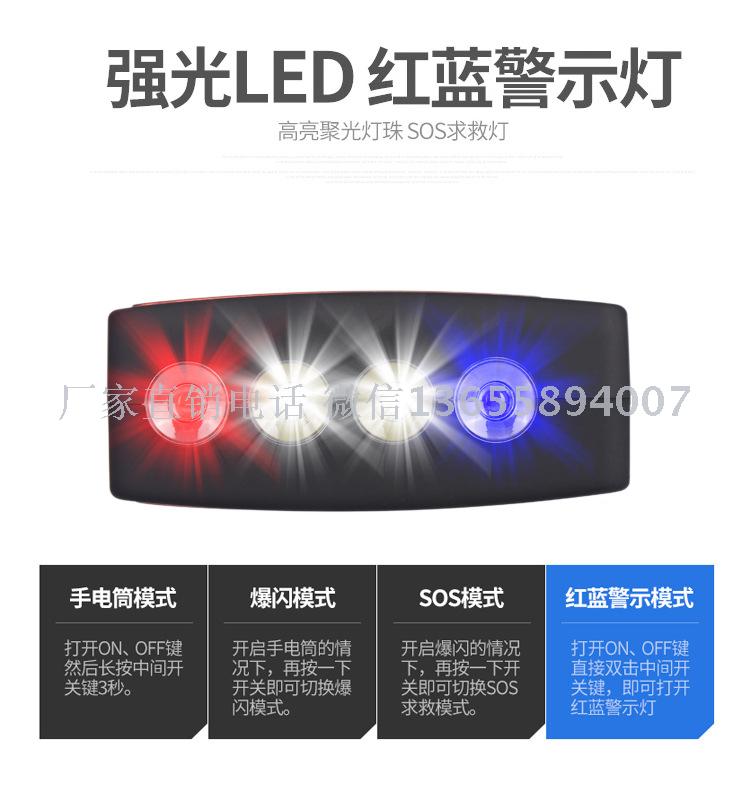

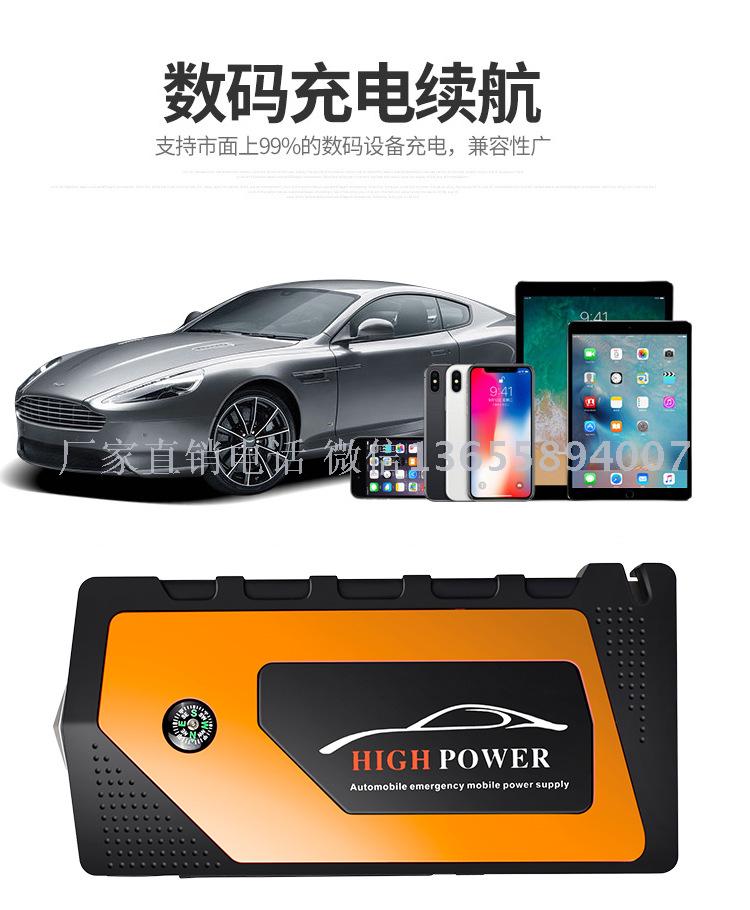

function : 12V car emergency power supply. LED lights (lighting, flash, SOS) can be used to charge mobile phones, tablets, MP3, MP4, digital cameras, laptops, pdas, handheld games, learning machines and other products.
Tips:
1. It takes about 3 hours for the product to be fully charged. Turn ON the ON first and then charge the product.
2: when starting the car, you need to turn the switch OFF before starting the car.
3: there is a difference between the peak power of 400A and the peak power of 600A. The product of the peak power of 400A is 40C, which can start gasoline cars with a capacity of below 4.0; the peak power of 600A is 60C, which can start gasoline cars with a capacity of below 6.0 and diesel cars with a capacity of below 2.0 (excluding vehicles with aging engines).
5. The product is not used for a long time. It is suggested to charge once every 3 months.
6. The product shall be placed at room temperature, which is beneficial to the service life of the product.
Special precautions for use of mobile power

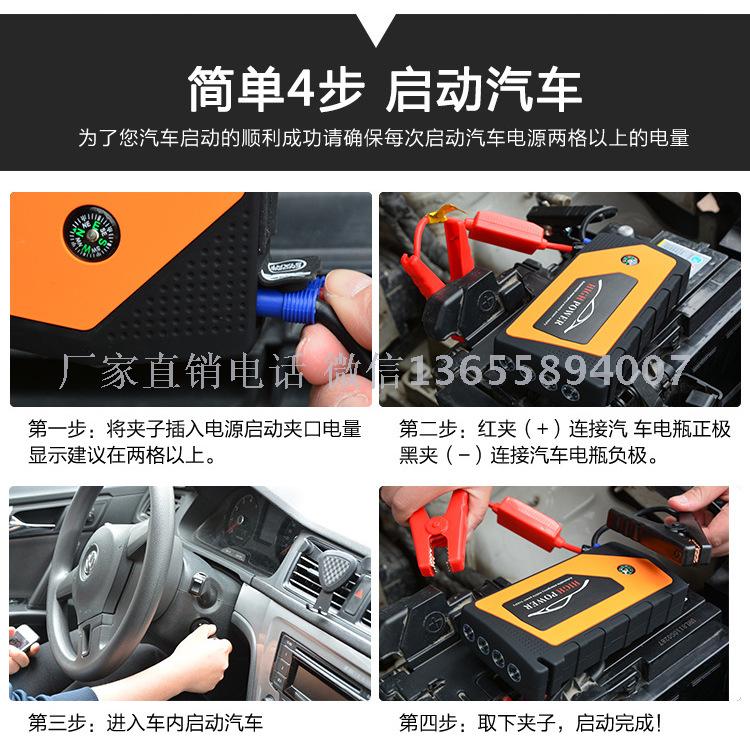

1. When starting the car, put the blue plug into place tightly, otherwise the effect will be affected.
2. When starting the car, the blue power indicator should be more than 60%, which can extend the service life of the product.
3. If the car cannot be started, do not start it by force. Check whether the battery holder is properly clamped and whether the battery head of the original car is rusted or dirty. Continue after cleaning up.
4. In the process of starting, if the vehicle cannot start all the time (1-2 times), do not start the vehicle by force, and further check if there is any other fault, otherwise the phenomenon of burning fuse and damaging the starting power supply will occur.

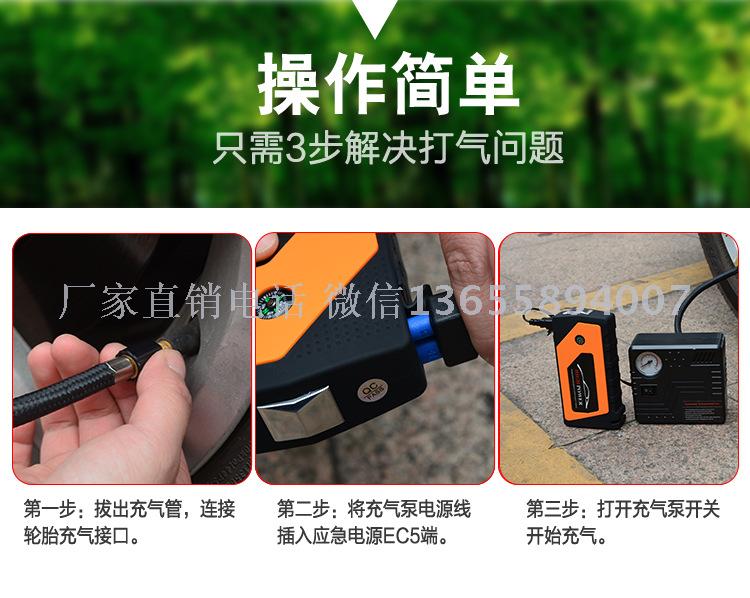

5. It is necessary to turn OFF the switch when starting the car and using the air pump and other on-board electrical appliances with the clip port.
6. Different styles of 400A and 600A are used for the power supply of cars in our store. If the number of A's exceeds the number of A's, the power supply will play an automatic power cut protection function in the process of starting the car.
7: in case of car feed and no electricity, the car power supply clamp can be directly clamped onto the positive and negative pole of the car to start.
