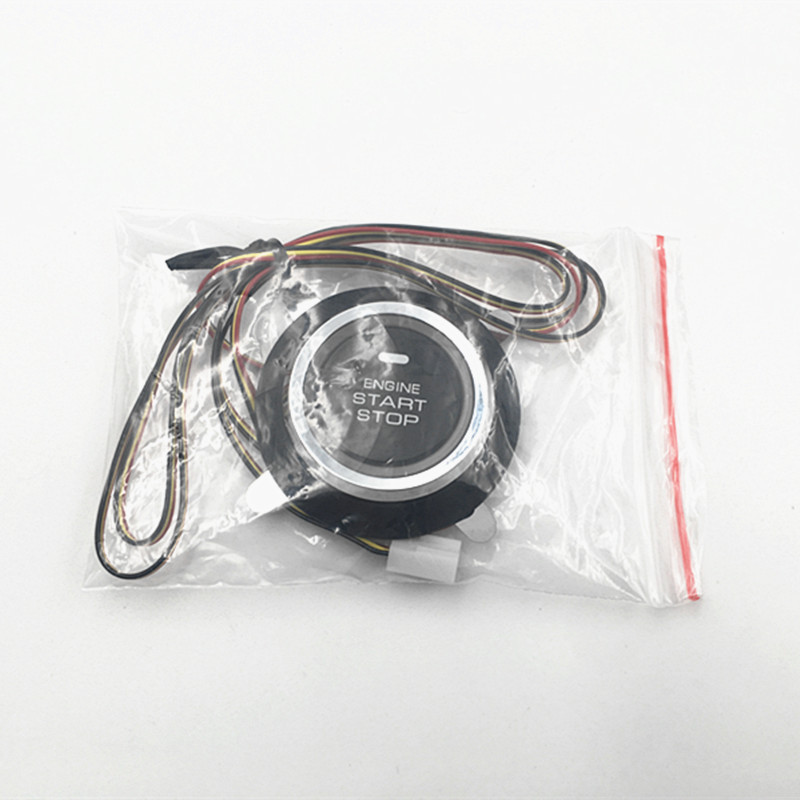

Packaging information
CTN Szie: 40 × 30 × 20 cm
G.W./CTN:10 kg
QTY/CTN:150 set/carton

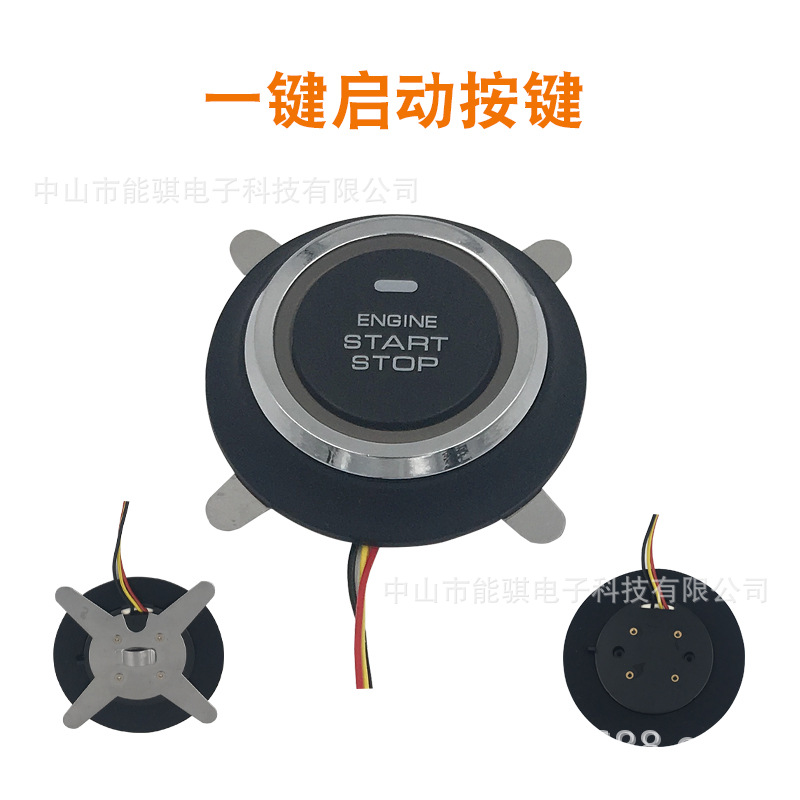

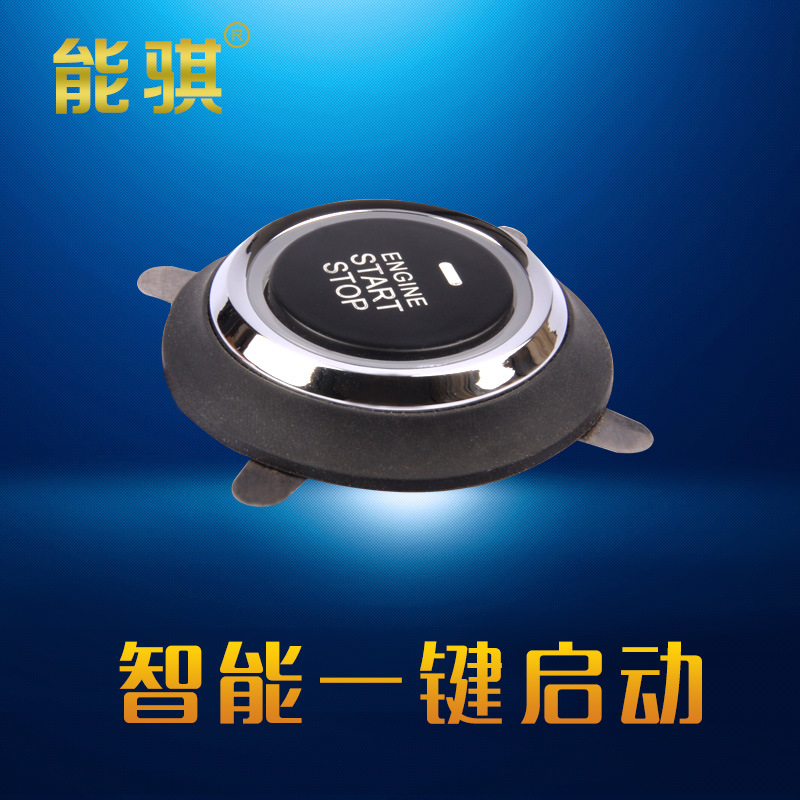

Nengqi general-purpose one-click start switch button, ultra-thin graceful and elegant. (The following figure shows the installed physical picture)
product Specification parameters: thickness: 10mm ,(excluding 4-angle iron sheet) outer diameter: 40.8mm (excluding black silicone ring)
line-bit function:
red(Button +12V power supply line)
black line (negative control of key LED light)
yellow(Switch button positive trigger output control)
3-wire function description:
+ positive trigger output control. After pressing the start button, the yellow line outputs +12V electricity; The black line is connected to the button light to control the negative output line, and the button light is lit.

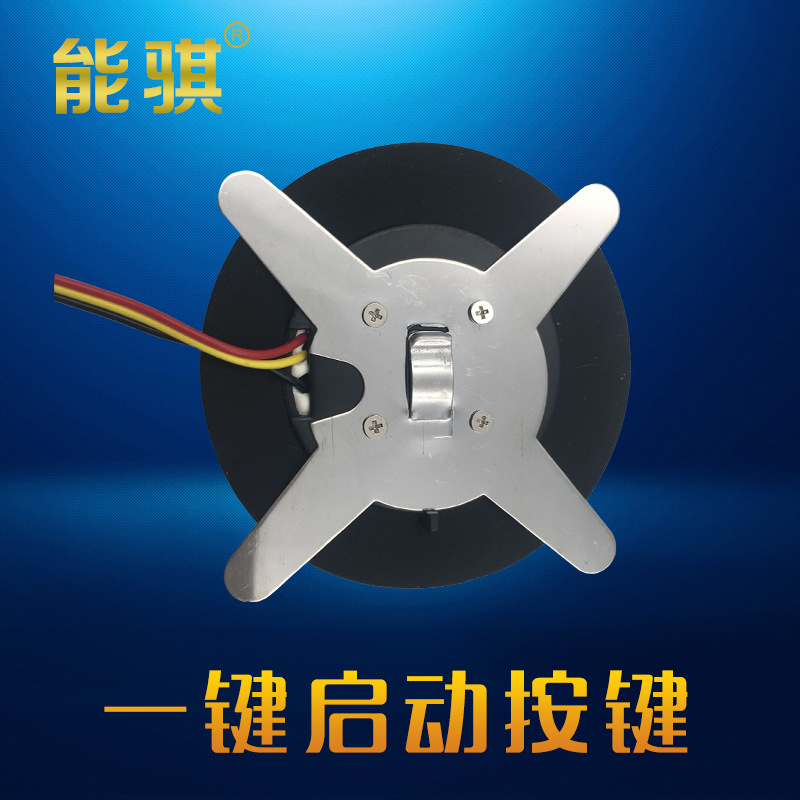

The product includes Start button shell, 4-corner iron sheet, silica gel, circuit board and connecting line.

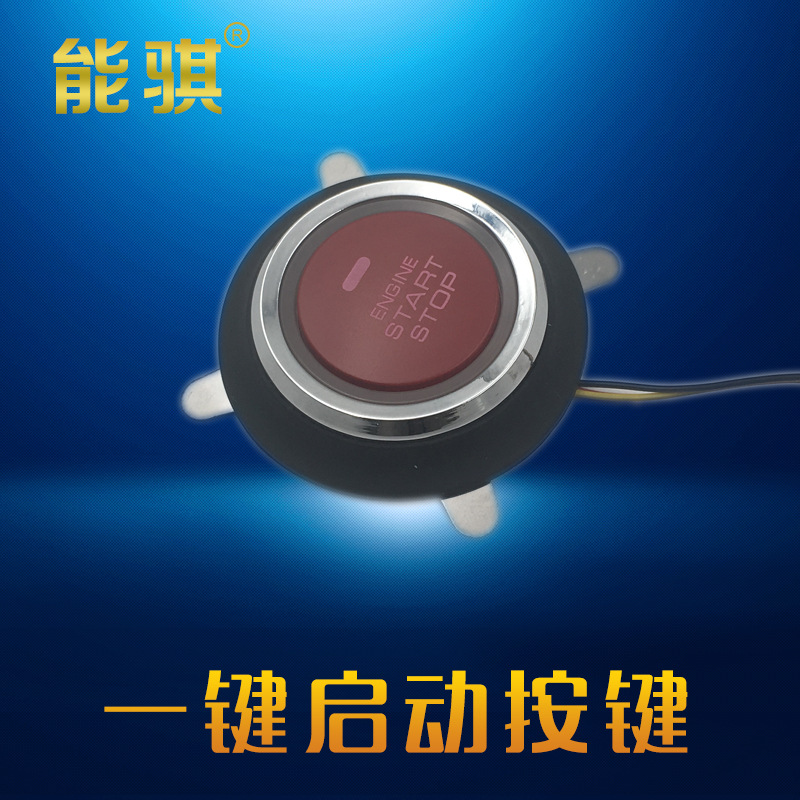

Notice to buyers: by default, the factory of this product starts button cover on hair black. If you need to start button cover in red, please continue to communicate with customers. Please understand.
