Manufacturers direct IE32F high voltage package magnetic flywheel igniter stator rotor and magnetic flywheel can be customized

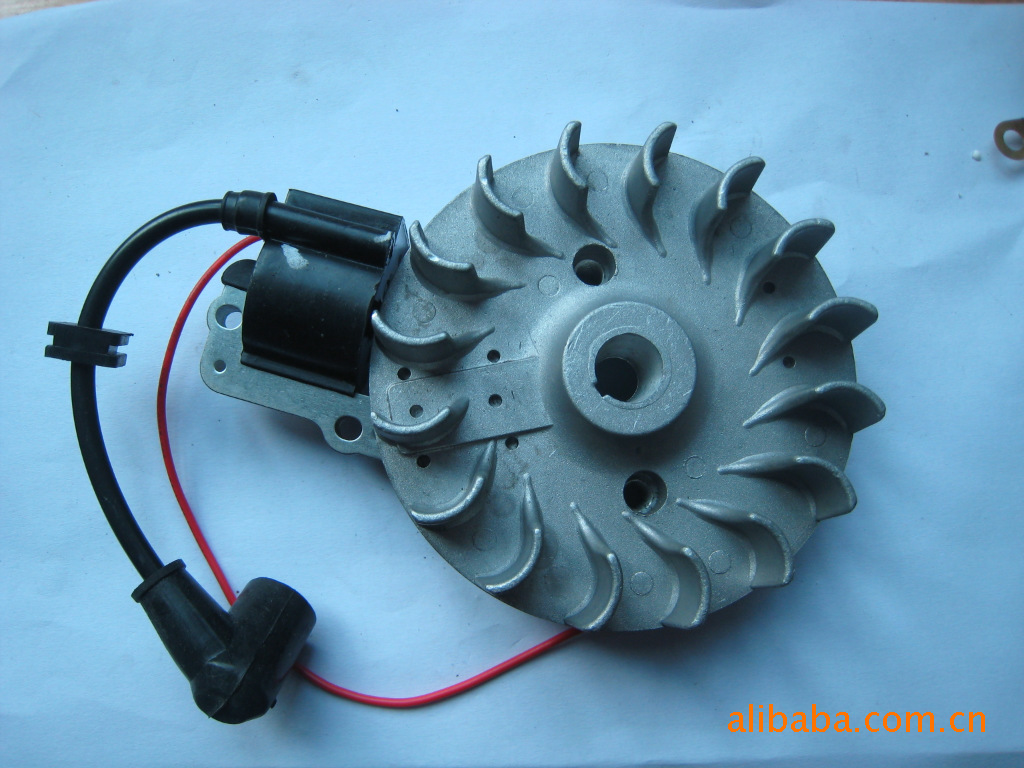

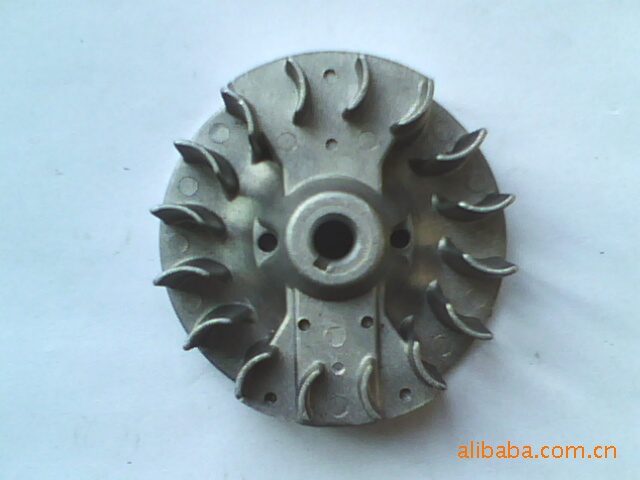

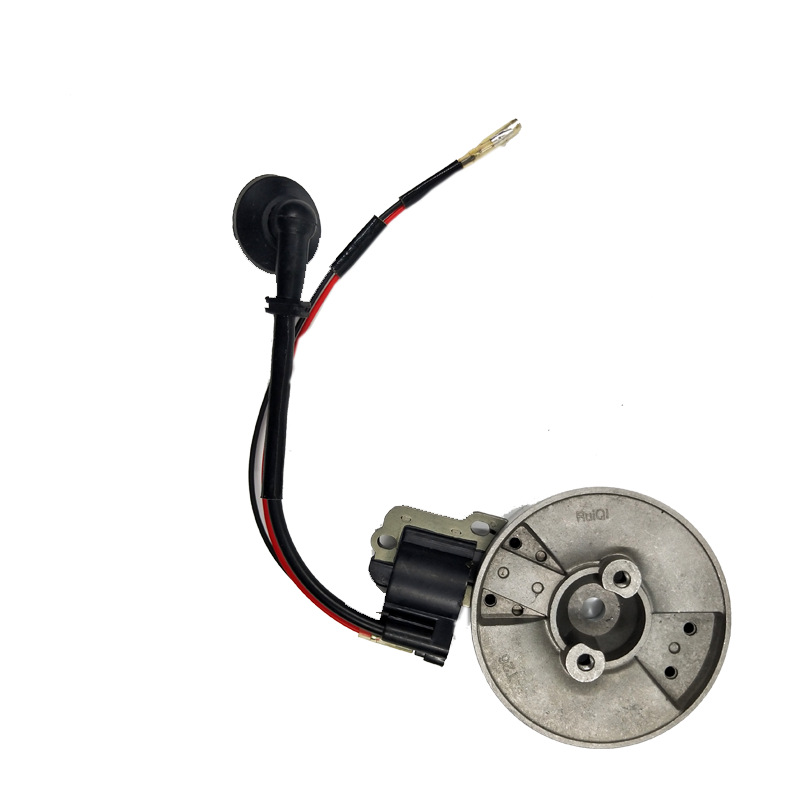

IE32F flywheel

1And supporting gasoline engine:2Structure: inner rotor type;3Rotor mounting size:1.Outer diameter of rotor:& phi; 87;2.Taper hole:1:5;3.Taper hole big end size:& phi; 12;4Stator mounting size:1.Mounting aperture;2 - & phi; 4.5;2.Mounting hole center distance: 14;5Direction of rotation:clockwise(From the side of the output shaft);6Ignition mode: HTC;7Ignition frequency:Rotate once for ignition;8And the air gap: (A/G) : 0.3;9, minimum continuous ignition speed: 550 RPMThe following(A/G = 0.3, Ta = 25℃, 3 g = 5);10, operating speed range: 550-10000 RPM;11, secondary output voltage:1.14 kvThe above/ 1100 RPM;2.17 kvThe above/ 6000 RPM;12, ignition advance Angle: 0 & ordm; & plusmn; 2 & ordm;;13Operating temperature range:- 40 & ndash; + 80℃.
