| Brand: no | Model: 2 SD - | 4-22 mm specifications: |
| Material :4140 high strength forged alloy steel | Process: heat treatment | Scope of application: power transmission and distribution 4-22 steel strand, aluminum strand, |
| Fire rating: high | Color: zinc plating | Net weight: 1.42 |

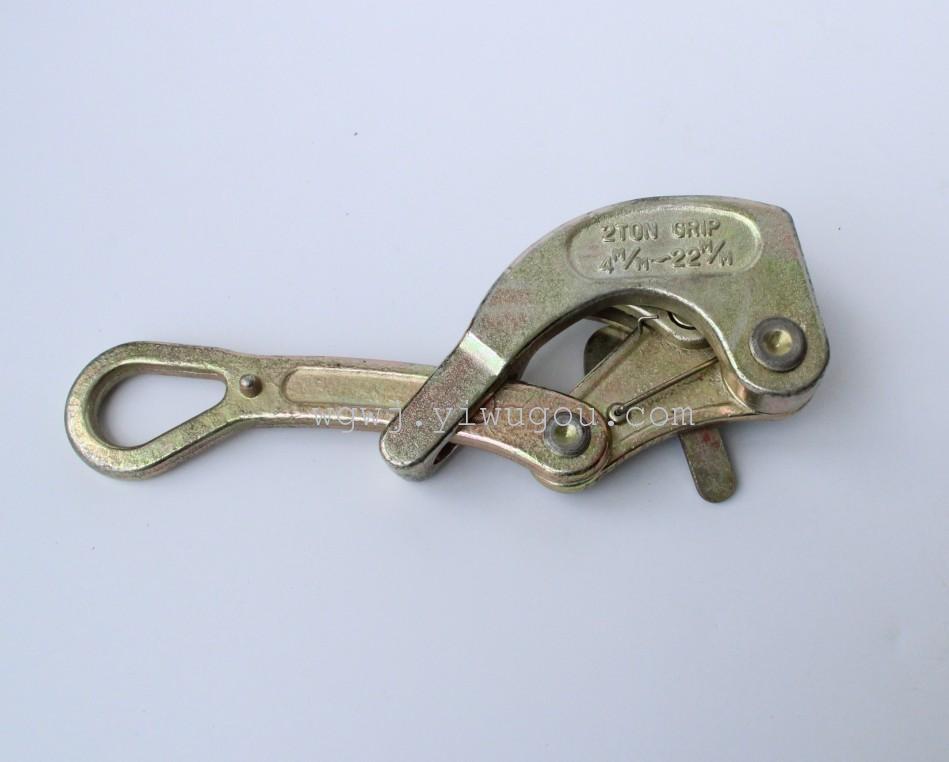

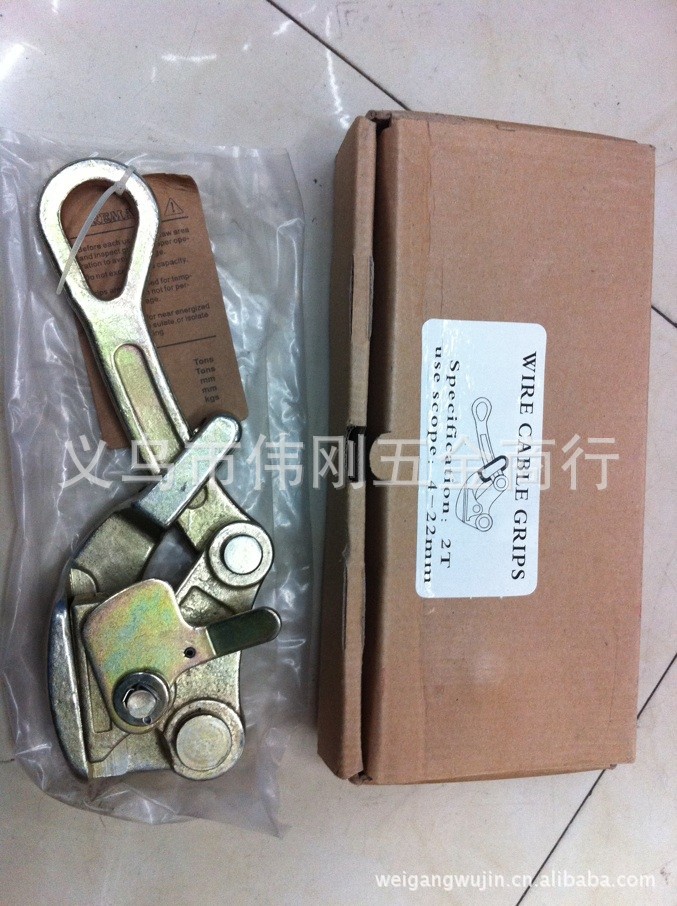

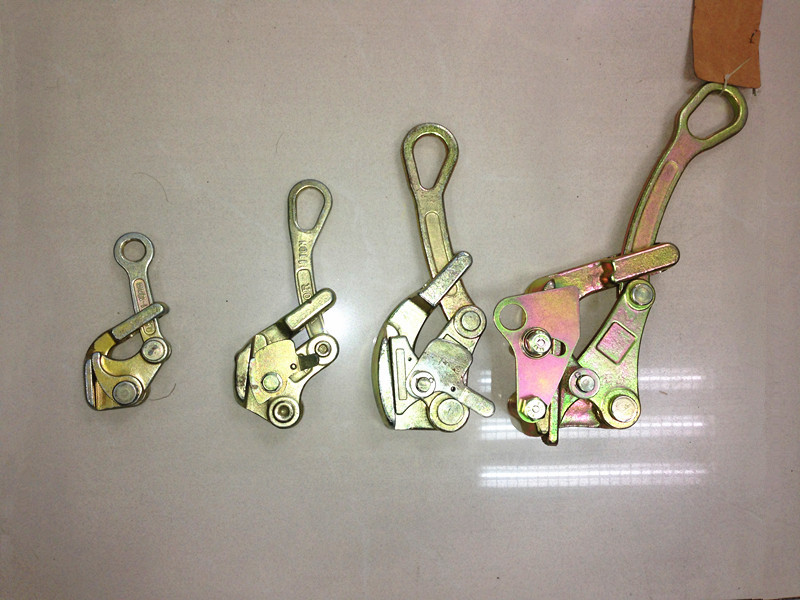

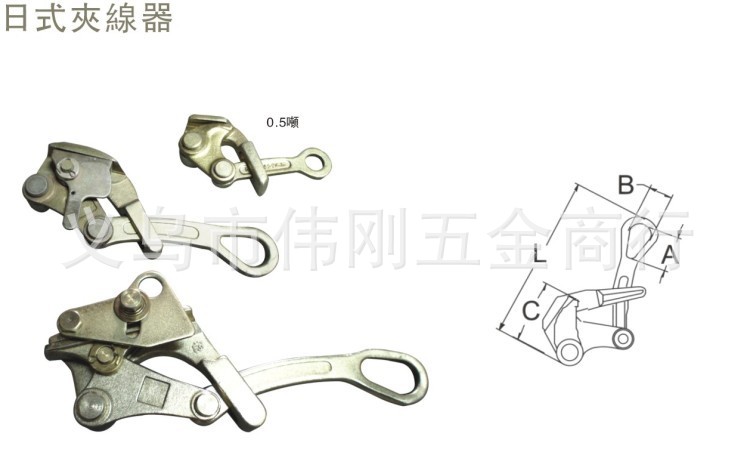

Japanese clamp
lowWith fine and smooth pincers, the damage to the wire is minimal
lowMade of alloy steel by forging. lowSharp claws and strong clamping force. lowThe clamp mouth is provided with a guard device and does not jump wire. lowAfter special heat treatment, strong tensile strength, high mesh, not easy to slip deformation.
Material:4140High strength forged alloy steel
Load range:0.5 T - 3 T
Structure: heat treatment and high temperature treatment (quenching, tempering)
Appearance:Zinc plating color
Safety factor:4:1

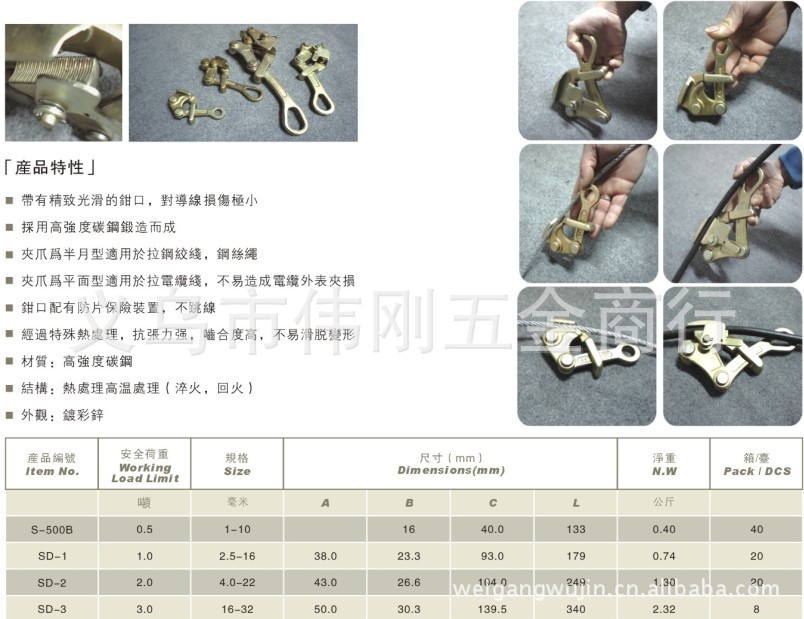

Applicable rope diameter of 0.5t is 1-10mm
1 ton applicable rope diameter of 2.5-16mm
2 tons applicable rope diameter 4-22mm
Applicable rope diameter of 3 tons is 16-32mm
