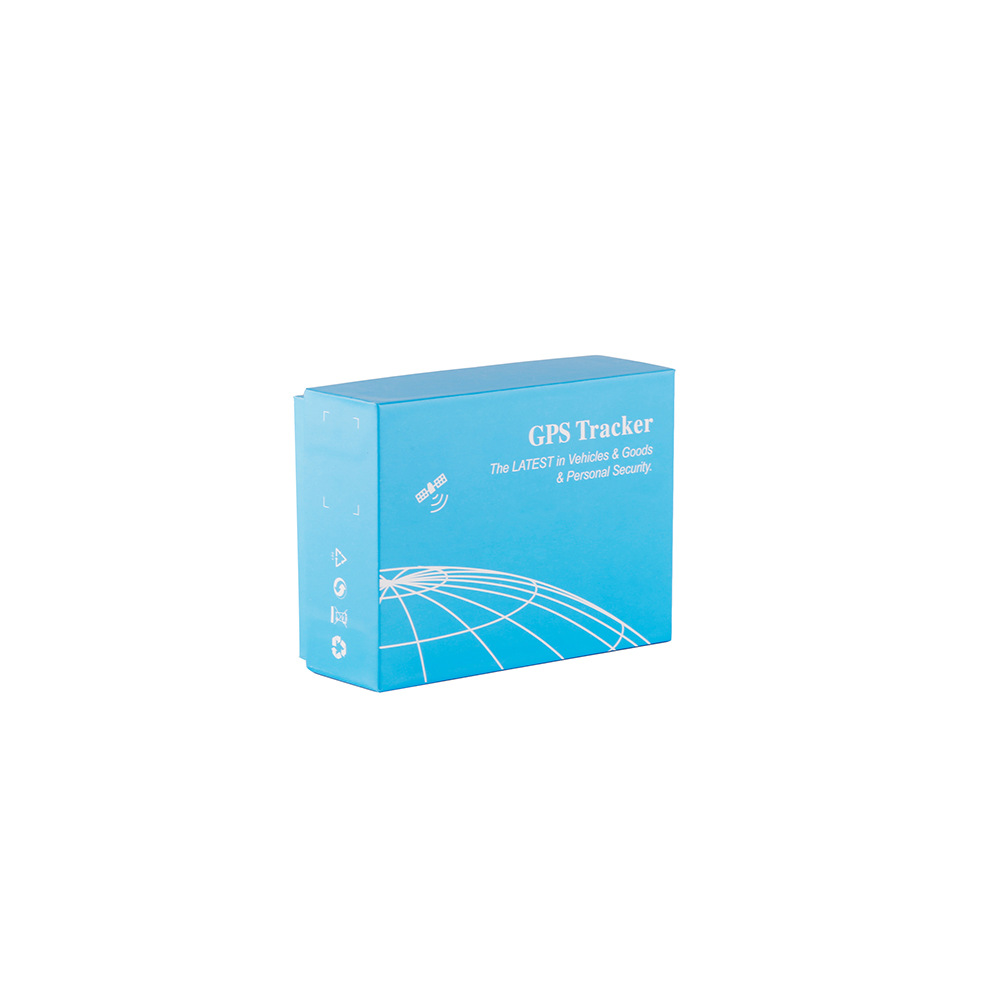

Packaging information
CTN Szie: 40 × 30 × 30 cm
G.W./CTN:9 kg
QTY/CTN:48 set/carton
All products produced by our company have gone through strict testing process, quality is fundamental, quality is everything, and everything is based on quality!
Product drawings and detailed product descriptions, please refer to the actual product
product advantage
1. Magnet + waterproof bag, which can be attached to metal such as car ship or container for real-time positioning

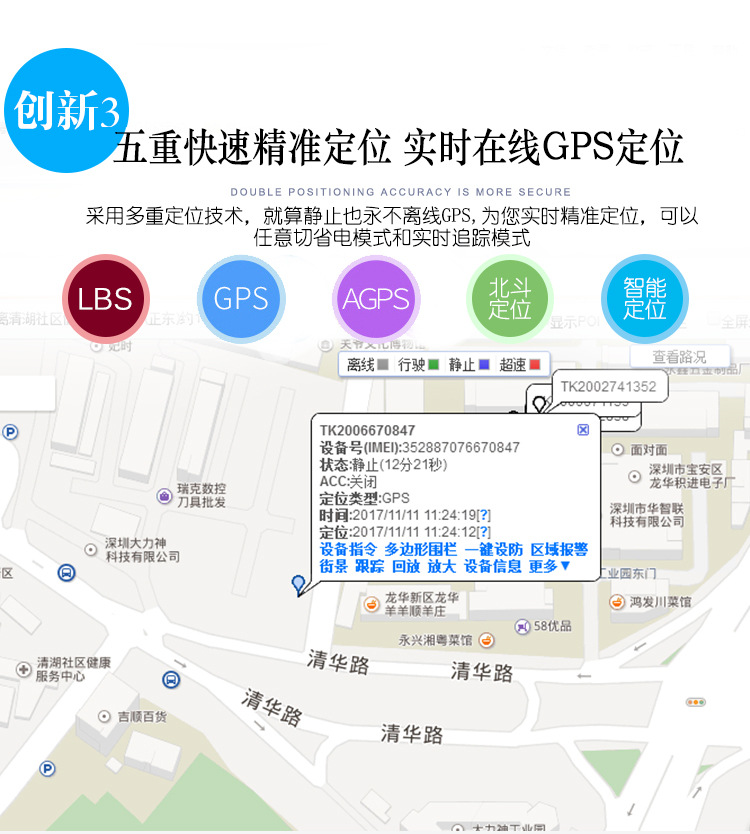

2. Positioning in various ways: free monitoring and query, global general, computer and APP query
3. Intelligent power saving mode

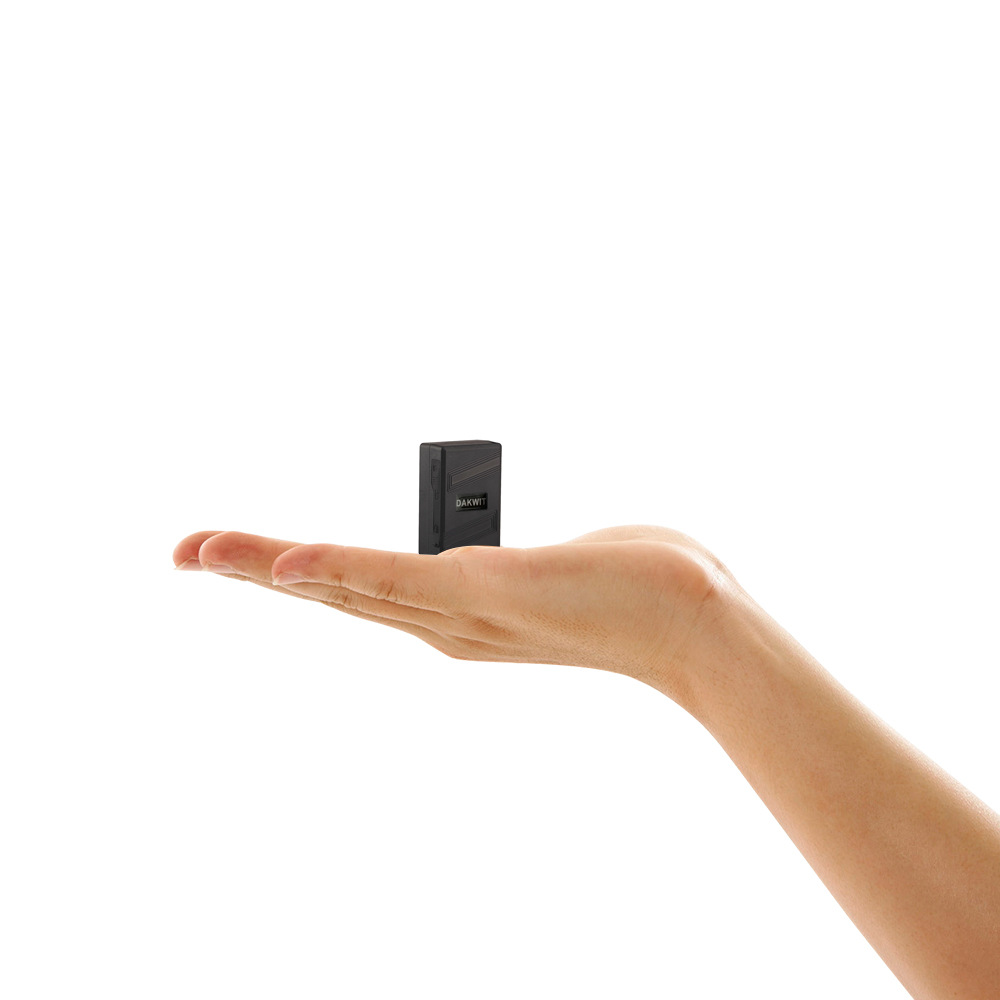

4, Volume fine, integrated design (built-in antenna and battery,), easy to hide, easy to carry.
5. Positioning is supported without a positioning server: Real-Time longitude and latitude/time/speed can be queried, and the positioning information can be automatically returned when the phone is hung up.
6. If the device enters the underground parking lot or other GPS blind area, it will report the last location information of the device to you.
7. Add/delete authorization numbers.

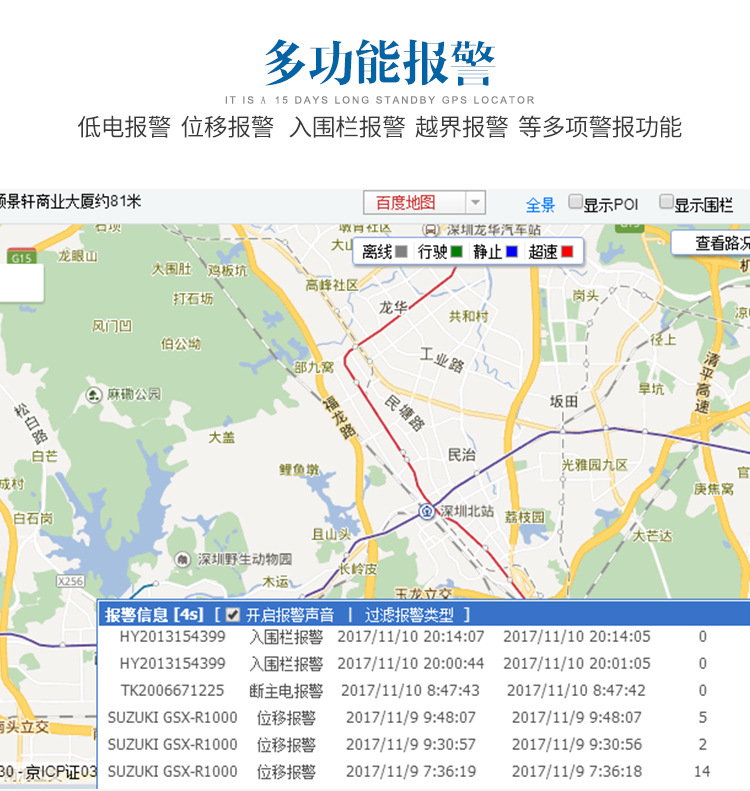

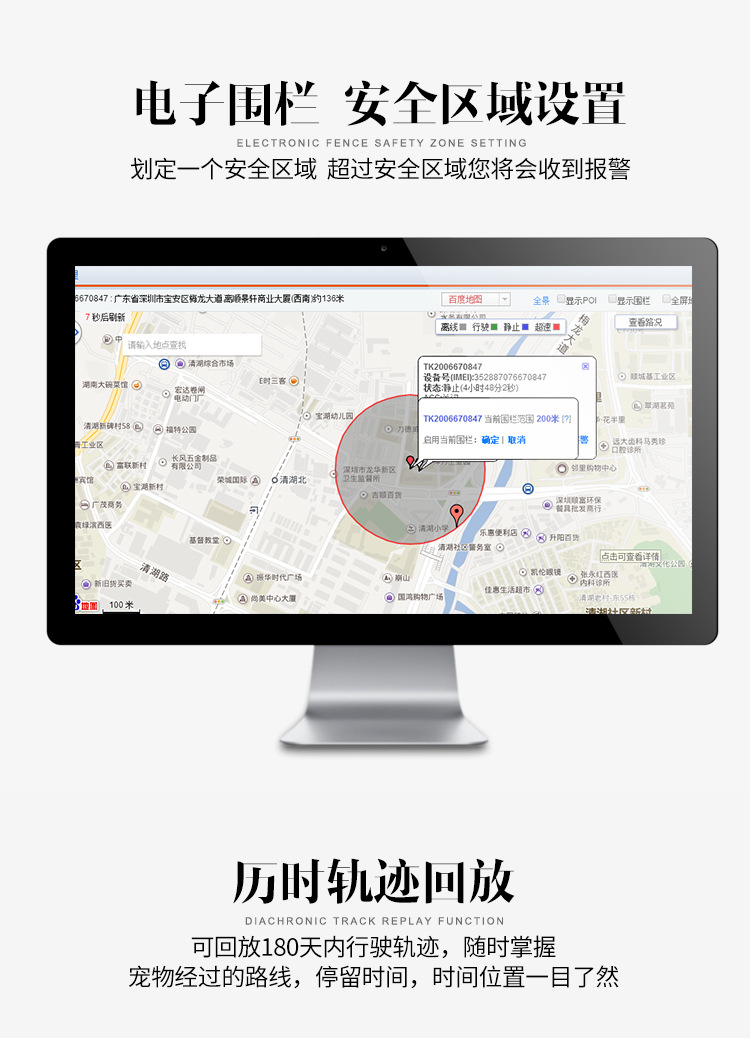

8. Electronic fence,
9. Shift alarm:
10. Overspeed alarm:
11. Low-power alarm function.
12. New vibration alarm (optional)
13. Add GPX function, you can also see the GPS locator's calendar track without SIM card
14. Check and listen to the surrounding sound, and use the sound function

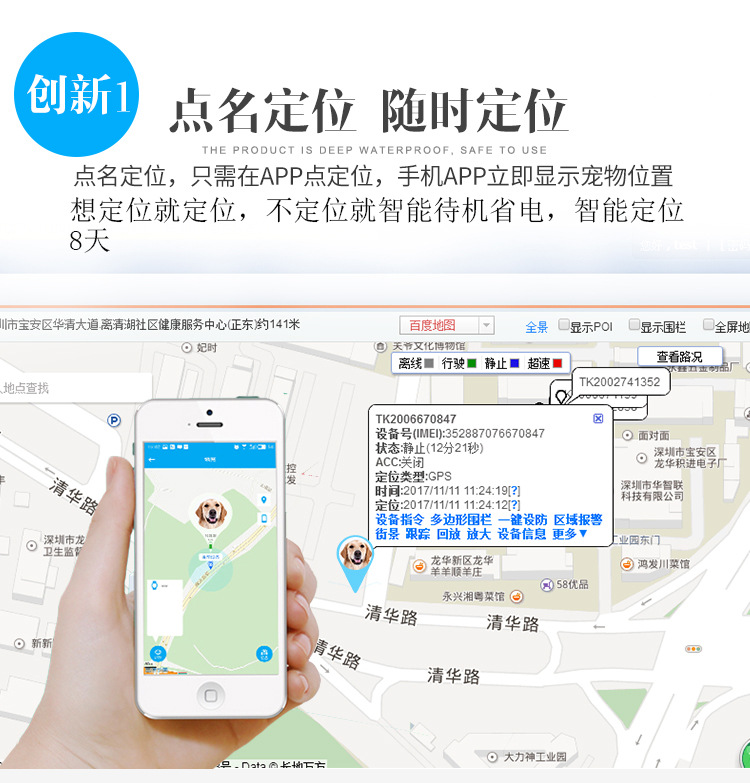

15. Single positioning, automatically click an APP to locate if you want to locate, and standby power saving if you don't want to locate
16. Plug in the mobile phone card, put the equipment outdoors, the equipment will automatically go online, do not need any settings, simple and easy to use, no installation

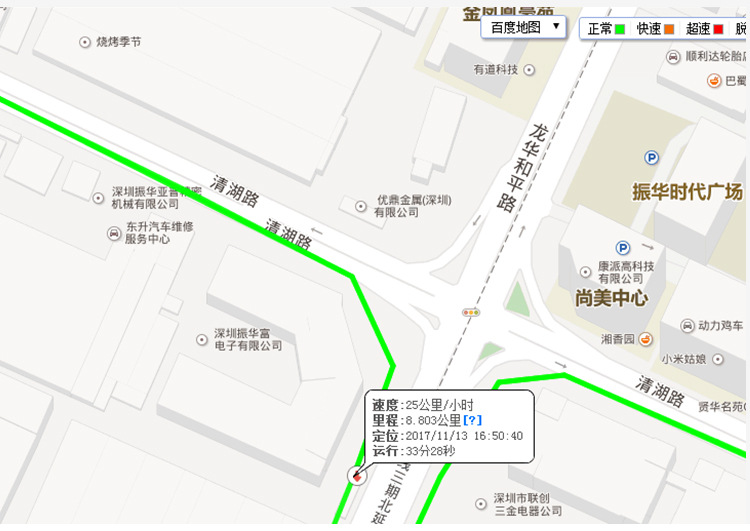

17. You can see the historical track of three months.
Technical parameters
2. Number of channels: 20 parallel channels
3. Sensitivity: -159dBm
4. Accuracy: 5 meters
5. Positioning Time: Cold Start/hot start time 35/1 second
6. Car charger selection, plus fee
4 Specifications
content | specifications |
the size of | 64mm x 46mm x 17mm(1.8 "* 2.5" * 0.65 ") |
weight | 40g |
network | G S M/GPRS |
the network Band | 850mm/900mm/1800mm/1900Mhz |
chip | UBLOX chip |
GPS sensitivity | -159dBm |
GPS the accuracy of | 5m |
the first start-up time | Cold status 45s Warm status 35s Hot status 1s |
car charger voltage | 12-24V input 5V output |
hand-held charger voltage | 110-220V input 5V output |
battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
the standby time | 24hours |
storage Temperature | -40°C to +85°C |
operating temperature | -20°C to +55°C |
humidity | 5%--95% non-condensing |
5. Pay attention to matters
1. GPS signals are available only outdoors, and GPS positioning is used.
2. Confirm that the mobile phone card has the functions of calling, SMS and GPRS Internet access.
3. Confirm that there is enough balance.
4. Confirm that caller ID is enabled and call forwarding is disabled.
5. For the first time, please charge for more than 6 hours.

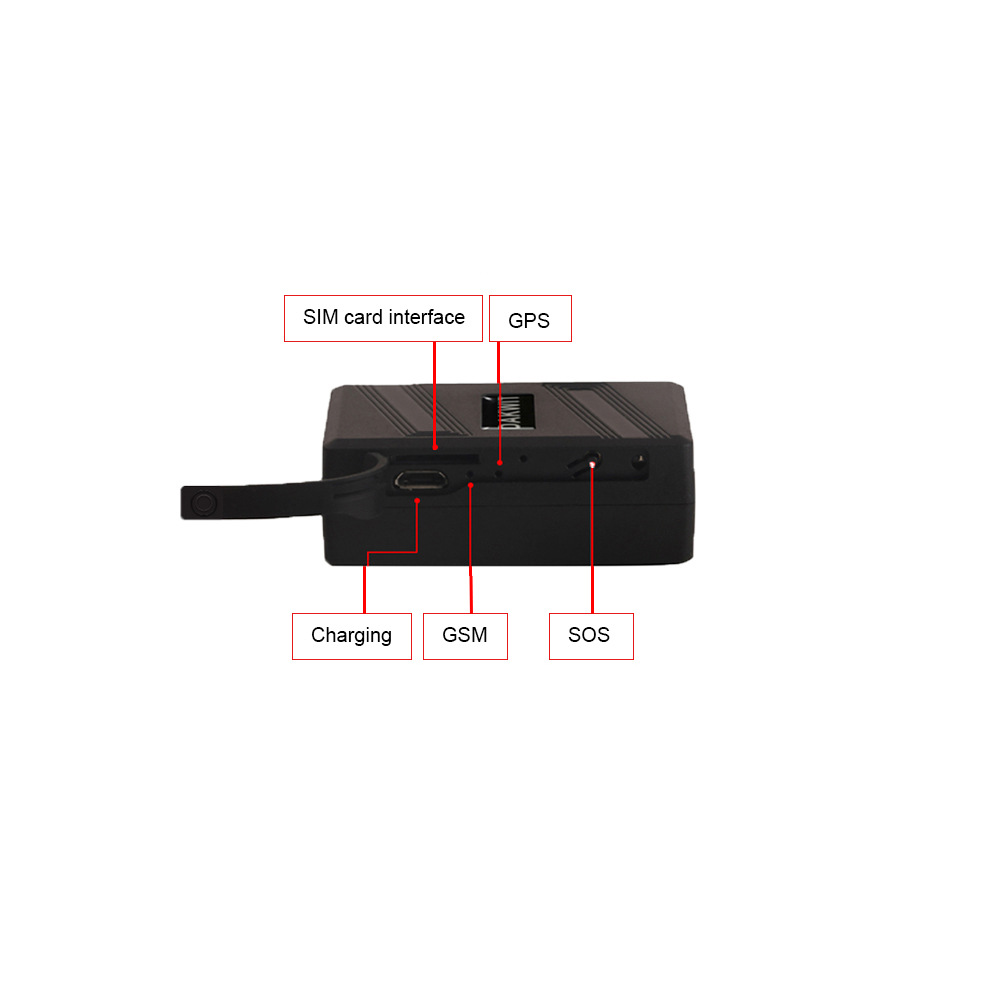

6. Insert the GSM phone card correctly.
7. Don't mounting and dismounting the device.
8. Please use the USB cable and charger configured by the manufacturer.
9. Time sleep is a single positioning mode, while vibration sleep and shutdown sleep are continuous positioning modes.
Command list
NAME | COMMAND | FOR EXAMPLE | reply |
Initialization | begin+password | begin123456 | begin OK |
Set GMT time zone number | time zone+password+space+local time zone | time zone123456 8 | time zone OK |
set authorized number | admin+password+space+phone umber | admin123456 13813813813 | admin OK |
cancel authorized number | noadmin+password+space+phone umber | noadmin123456 13813813813 | noadmin OK |
SOS alarm | long press the SOS,After set up the authorization number |
|
|
route record (need tf card) | gpx+password t001m***n+password | Gpx123456 t001m *** n123456 | Gpx OK tn OK |
battery check | check+password | check123456 |
|
IMEI check | IMEI+password | IMEI123456 | IMEI number |
Switch to the SMS mode | SMS+password | SMS123456 | SMS OK |
Switch to the GPRS mode | gprs+password | gprs123456 | GPRS OK |
change password | password+old pass+space+new pass | password123456 888888 | password OK |
Restore default Settings | reset+password | reset123456 | reset OK |
