Product information:
6 units can choose , G, OZ, OZT, DWT, GN, CT

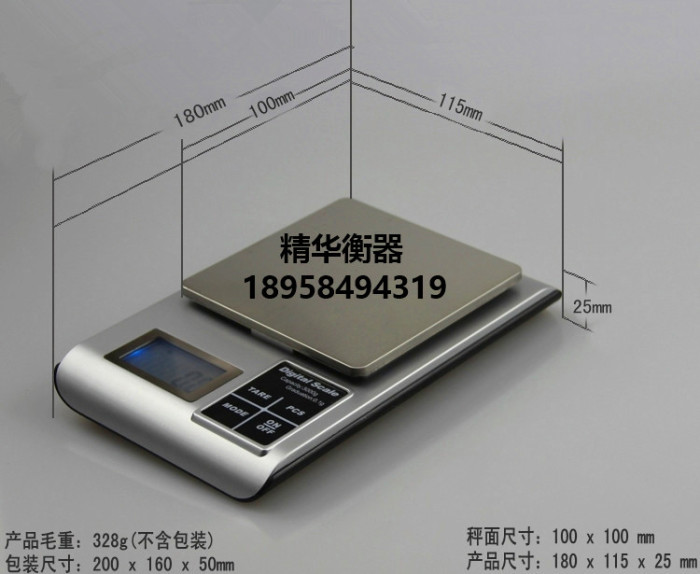

scale body size: 180mm* 117mm* 20mm
platform size: 100mm* 100mm
A large tray distribution

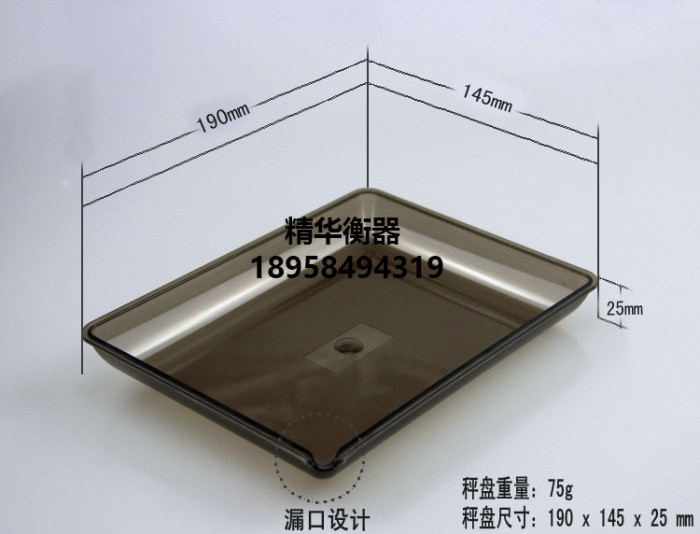

pan size: 190mm * 145mm * 25mm
screen size: 42mm* 20mm
box size: 200mm*160mm*45mm
battery: 2 batteries of 7
The range of error: 3kg/0.1g error range in 0.5g
for use in the vibration level of the products.
1. Operation:
put this product on a level surface.
1. short press [] key boot on / off.
2. display "0.00" or "0.0" , [unit] use key unit conversion.
3. conversion to the units to use, put goods weighing on the scale.
2. Reset:
1. put a tray or container to pan.
According to [2.] reset button, the display will show "0.00" or "0.0 ".
3. and then you can add items to the container or tray to weigh.
number: F1308-1 Counting function:
The premise of counting function realization: to count the weight of each item must be the same as.
1. boot up as mentioned above.
2. long press [] key counting, display sampling value 25, then can press [] key to switch to other units sampling value 60,75100, then according to the displayed value on an equal amount of sample.
3. press [count] key to complete the sample, and then press [count] key to start counting.
4. to count the articles on the scale, the specific number of display items.
4. calibration:
the product factory has completed the calibration, if the product can not be normal weighing, please re calibration.
according to the specifications of different calibration need to use different weights of 3000g, 2000g, 1000g, 500g, 300g, 200g, 100g .
1. in the boot state long press [unit] to the display 'CAL' and then the display will show the value of the machine calibration.
2. put on weight and weight calibration of equal value, then press [] open / off , display [PASS], the calibration is complete, the product back to the normal state of weighing.
If this product boot display "out2", please refer to the following calibration method for re calibration of the product.
1. will be turned on the product off.
2. hold a group of digital [ON/OFF] "and" [MODE] "button until the display, then press" [ON/OFF] "key, the display will show" CAL ", then the display will display a calibration weight.
3. will be equal to the weight on the display of the weights in the central, and then press the [ON/OFF] key .
4. display "PASS" , the product back to the normal state of weighing, the calibration is complete.
5. troubleshooting
weighing accuracy, the main reasons are: the failure of the battery is low, does not have the correct calibration items, weighing more than the maximum range of the product or not in the plane of operation etc..
[DISPLAY] said removing errors
[OUT2] need to calibrate
[EEEE] overweight, overweight should immediately remove items.
[UN2T] rough, to put the use at the level of the surface.
