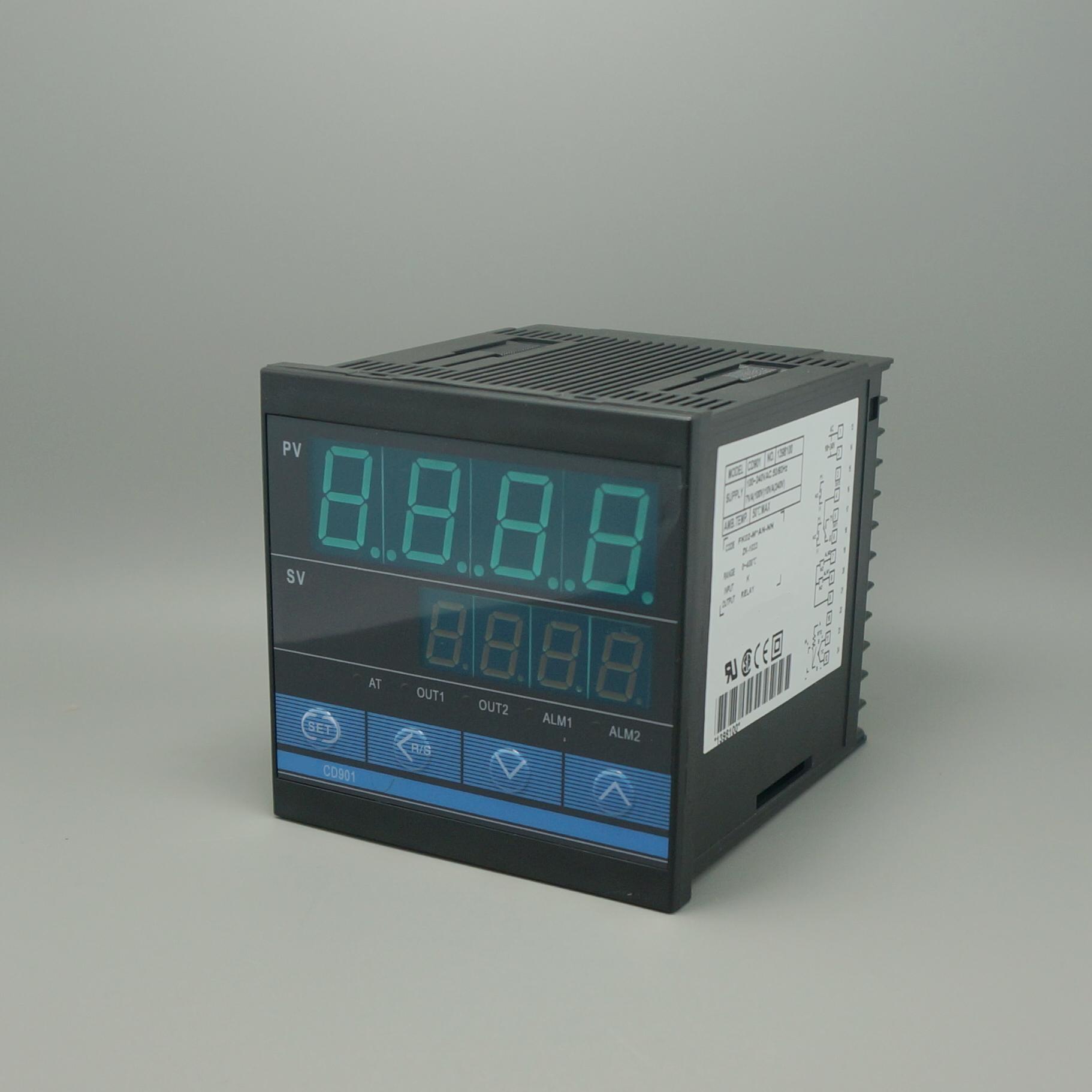

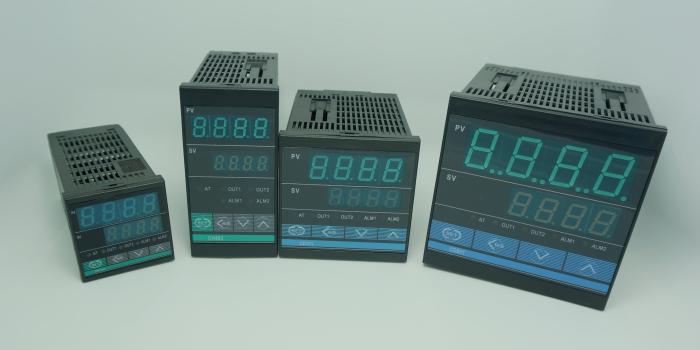

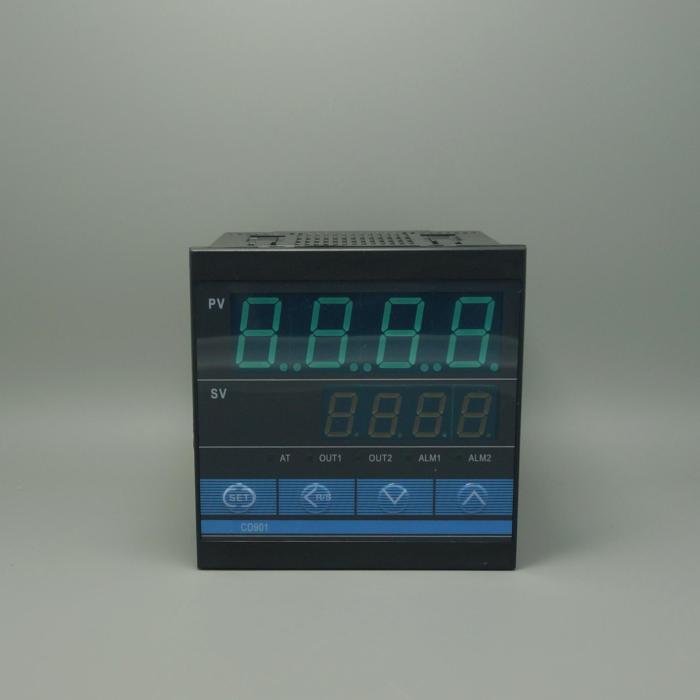

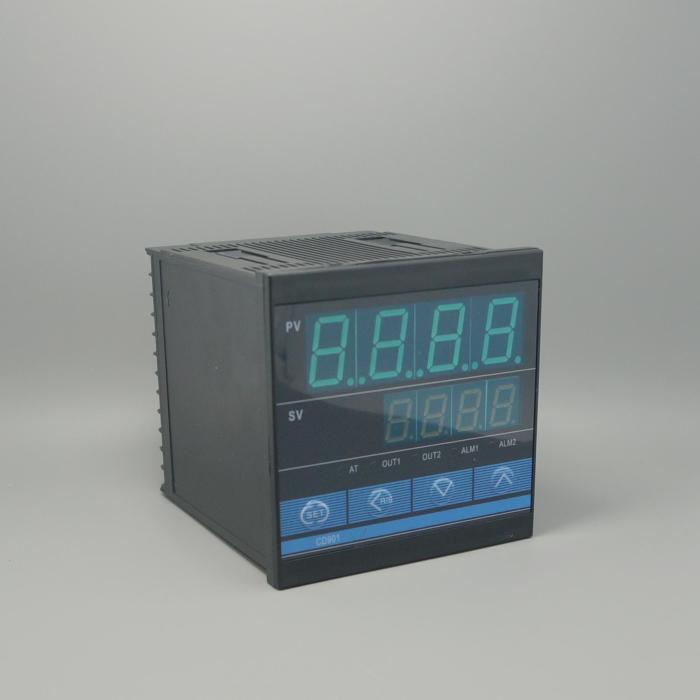

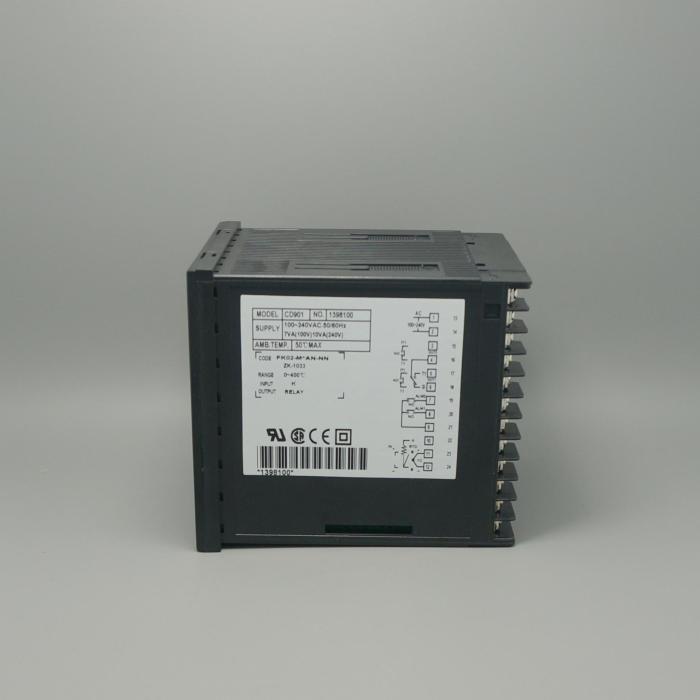

CD901 intelligent digital temperature controller STA-8000 Series intelligent digital temperature controller
Input signal：
Thermocouple： K、E、S、B、J、T、R、N
Thermal resistance ： Pt100 Cu100 Cu50 BA2 BA1 G Pt100 mini measure Romote sending manometer： 0-400Q
Line signal ： 0-20mV 0-75mV 0-200mV 0-5V 1-5V 0-10mA 4-20mA frequency 0-1 OKHz Accuracy ： ± 0.5% F.S 土 1 word
Control way： Fuzzy PID control, states control, manual control Control output： Relay contact point: AC250V 3A (resistance)
Voltage pules output Logical voltage DC 0-5V
Start pulse over zero： optical couple control silicon output 1A 600V
Start pulse on transport: optical couple control silicon 1A 600V
0-10mA、0-20mA、4-20mA Current output (below load resistance 600 Q)
Alarm type： high limit alarm, lower limit alarm, upper high limit alarm, below lower limit alarm Transmitter output： 0-10mA、4-20mA、0-5V> 1-5V Power output： DC24V(used in double line transmitter)
Work power： AC 220V ±10% 50/60Hz, AC85-264V 50/60Hz
