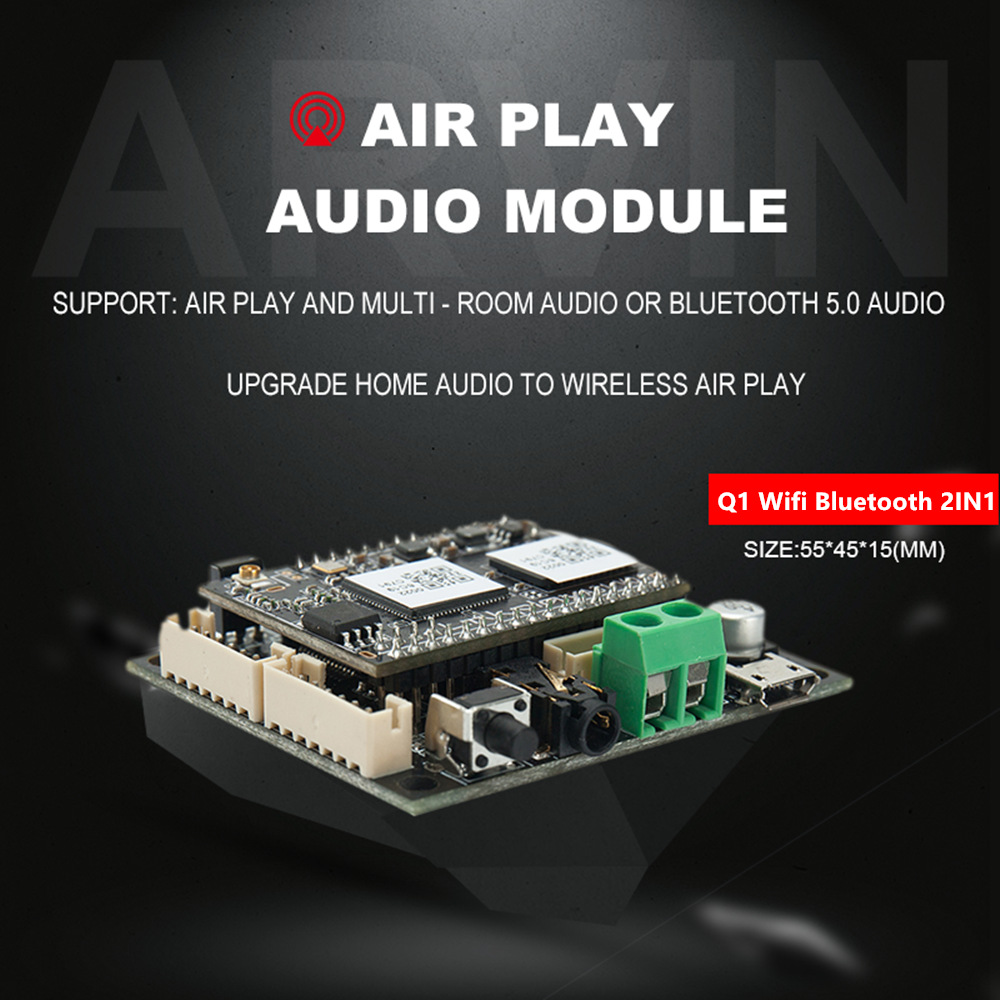

Smart Audio Receiver WiFi and Bluetooth 2 in 1 Model No: Q1 WiFi Audio Receiver Module Airplay DLNA Analog Output With I2S Model No: Q1

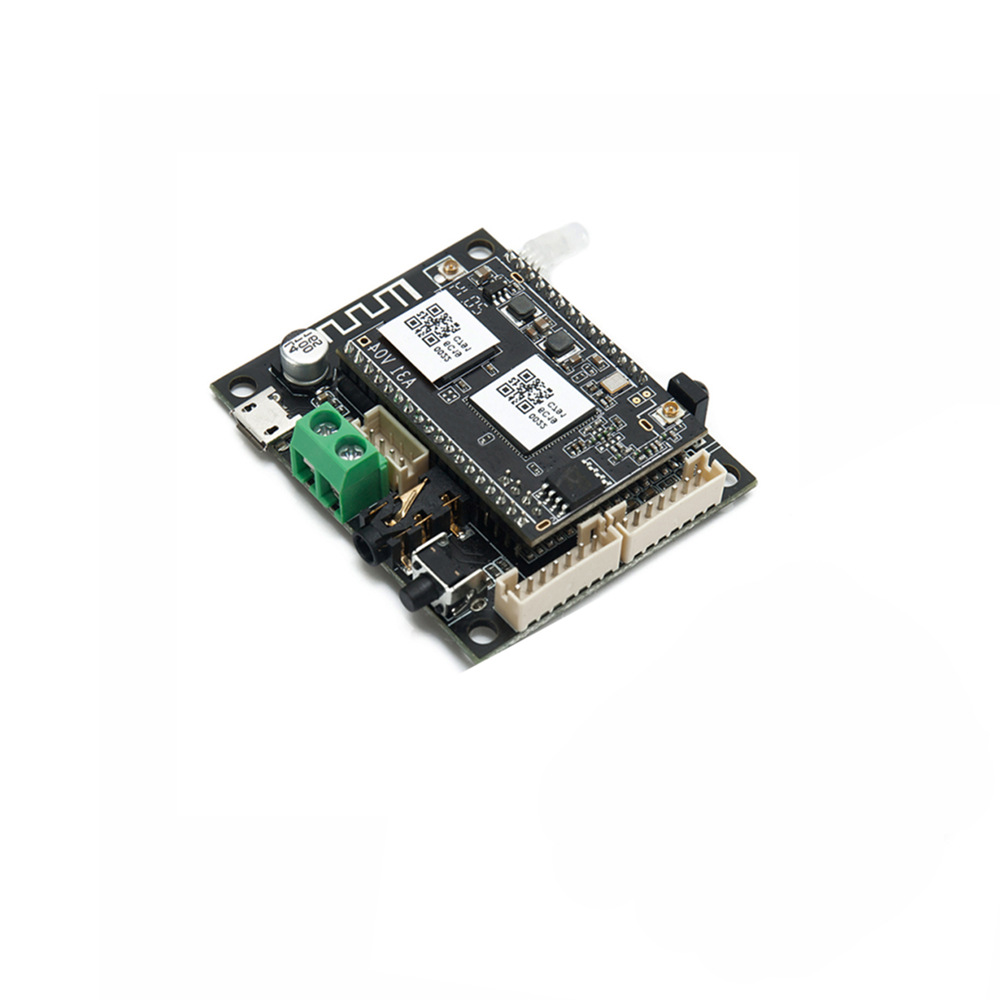

Q1 is WiFi and Bluetooth Audio Receiver board that can be easily integrated to your existing audio hardware devices to enable them with network and Bluetooth streaming capability. With Q1 installed and using app 4STREAM, it allow you to stream music from cloud, phone, NAS, and famous streaming services, such as spotify, deezer qobuz, tidal,QQ Music..etc. It also support multiroom and multizone control and music playback with multiple units connected.
Specification: Connectivity: Wireless network IEEE802.11 B /g/n 2.4G Bluetooth V5.0 SBC/AAC Power Input:5V-1A / 2pin Connector5V-1A Micro USB input Audio output: Analog 3.5mm/4 pin connector Digital I2S, SPDIF(44.1KHz) Frequency response: 20Hz to 20kHz SNR: 100dB @ 0dBFS, 1KHz THD+N: 0.03% @ 0dBFS, 1KHz Music Format: FLAC/MP3/AAC/AAC+/ALAC/APE/WAV Decoding: Up to 24bit/192kHz Protocols: AirPlay, DLNA, UPnP, Spotify Connect, Qplay NAS Support: NAS with DLNA support Dimensions: 55*45*12mm Certificate: CE.ROHS,FCC
Accessory: Q1 Smart Audio Module x14Pin PH2.0 Cable x12Pin Power Cable x1 User Manual x1
*Attention of the Smart Audio Module Device:1. IR Remote Control is Optional.2. 7Pin PH2.0 Cable Optional.3. Micro usb to OTG Cable Optional.3. R/L Audio Output Module Optional.4. COAXIAL OUT+OPTICAL OUT Module Optional.5. COAXIAL IN+OPTICAL IN Module Optional.

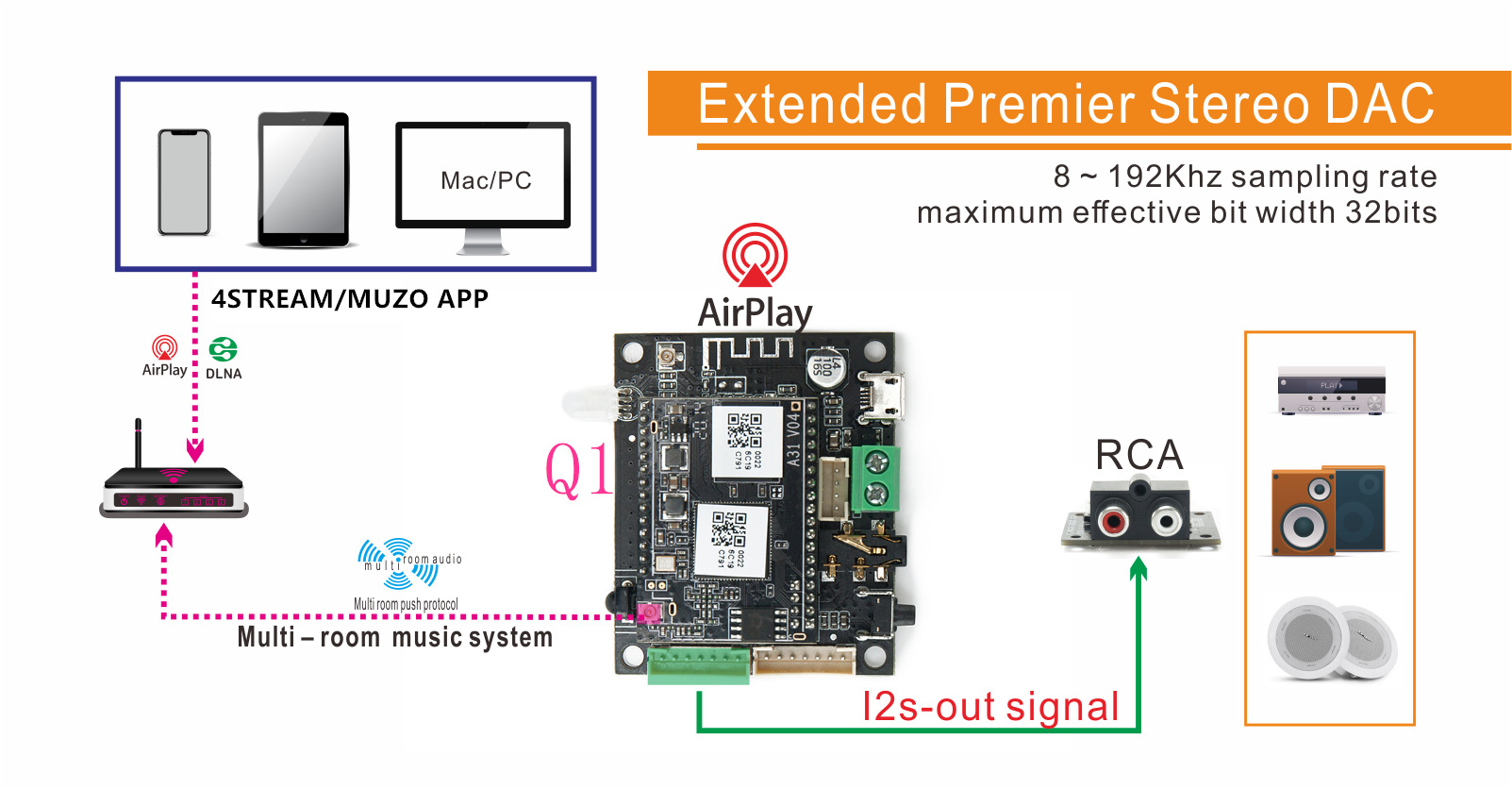

------------------------------------------------------------------------------------------------------------------------------- Make your Speaker Wirelessly With Q1 Audio receiver board Integrated, You can stream your audio wirelessly to your speakers by Wifi, Bluetooth 5.0, Airplay, DLNA & UPnP.
More Space, More Creativity The compact design will left you with more space for your wild & creative ideas, so you can DIY more freely and add features of your choice to make your speaker more powerful.
New Upgrade Q1 has a huge upgrade from the previous version. Now with Bluetooth 5.0 Pin connector for SPDIF output/OPTICAL output/R/L Audio Output, ADC Key (for external button board ,Inclued), 2x I /O for external control such as volume knobs. Also can work as a USB DAC, so you can connect it to a PC and stream PC audio digitally. Now also support changing device WiFi SSID & Bluetooth name by mobile app,thanks to the upgraded CPU.
DIY Rookie Friendly If you are a DIY rookie and don't understand complicated ports. Don't worry, the ports we use are common ports and simply to use. Our app is user friendly as well. Using our remote control is another convenient option for you too.
Make your Family Proud of you DIY a unique speaker for your family is very meaningful. Enjoying the music together and makes the family relationship more closely.-------------------------------------------------------------------------------------------------------------------------------
product Weight: 70g/piece packing size: 10.5*7 * 3.5MM
