| Customization: yes | ||
| Voltage :12 (V) | Type of power supply: cigarette lighter power supply | Whether to provide processing customization: yes |
|
|
Description of baby:
Suitable for car, bicycle tires, ball, rubber boat and other inflatable, widely used. On the highway, in the field, or anywhere, when a car tire suddenly leaks, it can play a more emergency function. Car tires at any time to maintain the correct tire pressure, can save gasoline, protect the tires, and ensure the safety of driving; Ready at any time, in the trunk of a car, do not take up space, infinite.

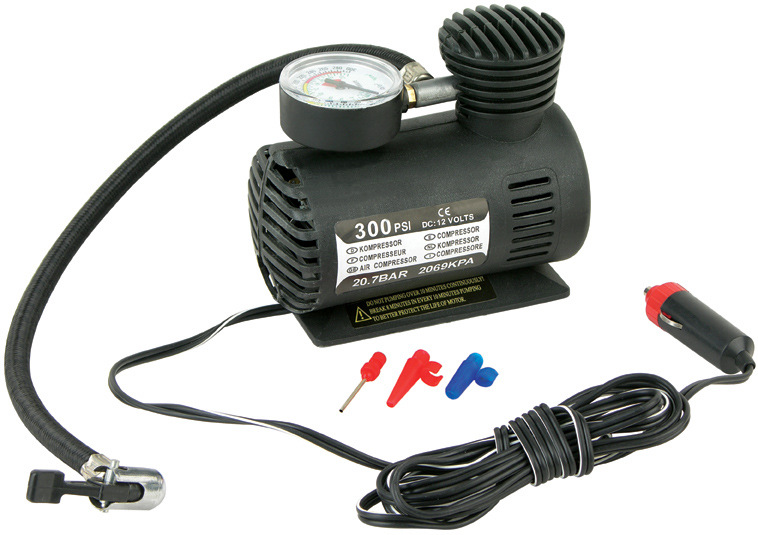

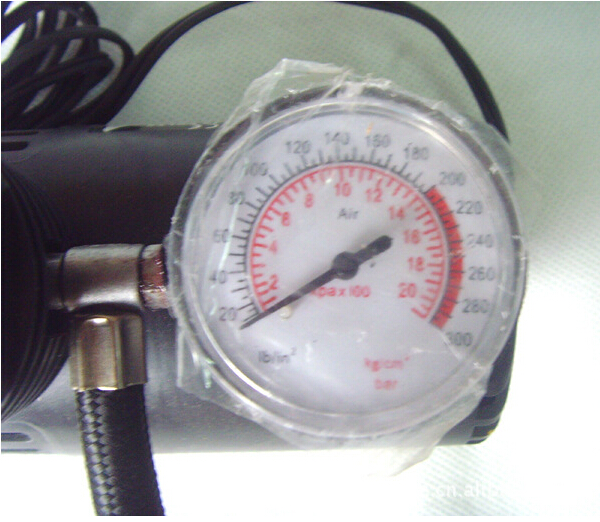

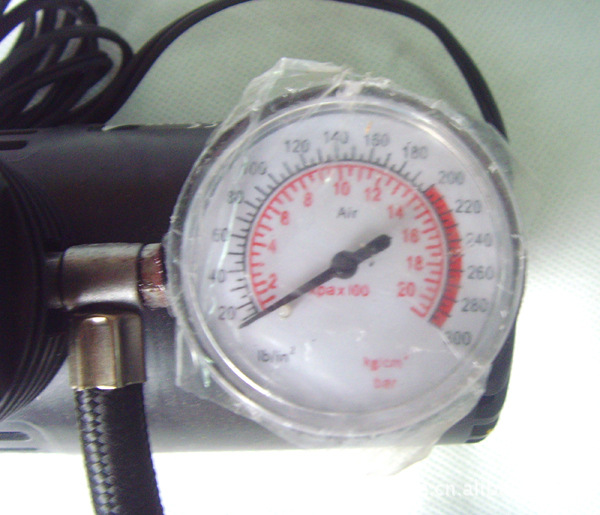

[product description] 1, the use of metal movement, wear resistance 2. Super horsepower and inflatable express 3. Stable work and low noise 4. Oil-free cylinder design 5. Built-in precision pressure gauge 6. High quality power cord and rubber hose
[size] External dimensions: 16.5 x 140 cm Trachea size: about 45 cm
Material: PP (conventional)
Operating voltage: 12 volts dc Maximum current: 15A
Power supply: dc
Wire size: 3 m, 3 transfer air nozzles

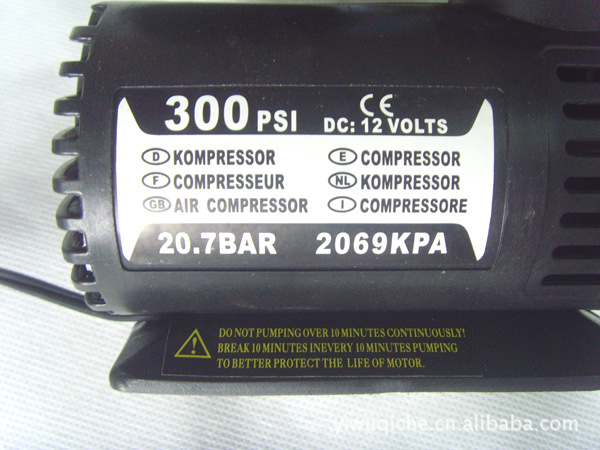

Pneumatic: 250/300 PTS
[usage] 1. Insert the air nozzle at the top of the rubber tube directly into the tire valve. When you hear the sound of air leaking from the tire, it means that the air is in circulation. 2, take out the plug, directly on the car cigarette lighter, can be inflated. 3. When inflation occurs, the gauge pointer rises with the tire saturation degree. When the pointer reaches the appropriate tire pressure (the tire pressure of general car tires is 223kpa=35PSI), the plug and nozzle are taken out to complete the work. 4. Please connect the professional ball needle and plastic nozzle equipped with the machine to the air nozzle to inflate the ball and other gas-demanding equipment.
[precautions] 1, can not be used in large and overweight vehicle tire inflation, such as trucks, trucks, box-type container vehicles, etc.; 2. When using, please start the car engine to enhance the power without consuming the battery power; 4. When charging, please take a cooling rest for 10 minutes, which can extend the life of the motor. When inflating the rubber boat, it can work continuously for 30 minutes. 5. When the general tire is inflated, it can reach 220KPA normal tire pressure in about 4-6 minutes, while the big tire will take longer; If the meter pointer rises rapidly when the inflation begins, it means that the air has not been filled into the tire, so it must stop working and operate again, otherwise the meter and motor will be damaged. 6, do not leave the body when using, pay attention to tire pressure, not too oversaturated; 7. After the use of the machine, the air nozzle wrench must be straightened to avoid rubber fatigue; 8. If the car cigarette lighter is not clean but not conductive, or the fuse burns out, the machine cannot operate normally, please ensure that the cigarette lighter is conductive; 9, the machine should avoid damp, heavy fall and sand and mud invasion, avoid children playing, so as to avoid damage.
Tire pressure conversion unit:
1 bar = 1.02 kg/cm2 = 102 kpa = 14.5 PSI.
The units of front wheel 2.1-2.3 should be bar. Since 1bar=1.02kg/cm2, the difference between the two is not large. But tire shop often referred to as kg/cm2 for kg. A normal tire is inflated to 32PSI.
If you are a road trip enthusiast, don't hesitate, this is for you. When your car into the high altitude area, remember to check the tire pressure in time, put a vent, after the plateau and then timely stop to replenish the air, very convenient, I wish you a pleasant journey!
specifications: a single
size: pipe length 61cm/ fuselage 16.5x15.5cm
The weight of the: 2.55 kg
Use the power supply: dc DC12V 14A
【Product features】
1. This machine is applicable to all 12V automobile tires, especially 4X4, minibus, trucks under 2 tons, high-end cars and other larger tires, large gas volume, fast inflation!
2. It is also suitable for inflating motorcycle, bicycle, ball, rubber boat, beach float bed, inflatable toy and so on.
3. On the highway, in the field or in the morning to work, when a sudden tire leak or tire nail, can play a more emergency.
4. Maintaining the correct tire pressure ensures safe driving and saves gas. Use it with the car, just in case.
【Method of use(please operate in sequence)
1. Plug the power supply of the air pump into the car cigarette lighter.
2. Screw the joint at the end of the trachea into the tire valve and tighten it.
3. Open the air pump switch, can start charging.
4. When charging, the pointer of the barometer will rise with the increase of air pressure. When the appropriate air pressure is reached (generally, small car tire pressure is 28-35 psi, 2.2kg/cm2-2.5kg /cm2), the switch will be turned off and the car nozzle connector and power plug will be removed to complete the charging.
【Matters needing attention】
1. Please start the engine to enhance the power and extend the battery life.
2. This machine can only use dc DC12V power supply, if you want to use ac, you must add a transformer.
3. The normal tire pressure of 30PSI (.2.2Kg/cm2) is inflated in about 3 minutes. The pointer of the instrument rises rapidly to 50-100psi, indicating that the air is blocked and does not enter the tire. At this point, it is necessary to immediately remove the air nozzle connector and operate it again, otherwise the motor and instrument are likely to be damaged.
4. When using, the person does not leave, pay attention to tire pressure at any time, can not be inflated too saturated. (the correct tire pressure of each tire will be marked on the side of the tire and refer to the vehicle instructions)
5. If the car cigarette lighter is not clean or rust does not conduct electricity, or the fuse burns off, the air pump is unable to operate. Make sure the cigarette lighter conducts well and the fuse is not burnt. The air pump plug is equipped with a fuse. If the air pump does not start, please unscrew the plug for inspection and replace (the fuse is 15A).
6. In order to ensure the good work of the air pump, it is not allowed to continuously inflate for more than 10 minutes. If the pump needs to be continuously inflated for a long time, it must be opened for 10 minutes and then shut down for 10 minutes to cool down! Continue to use, otherwise it will damage the air pump and accessories
