Excellent quality and good service!!! For details, please contact: fixed phone: 0579-89355500 mobile phone: 139 5793 7914 (WeChat same number) product Information:
Voltage: 220V
Power: 1.1KW/h
Product Size: 20L
Product Size: 530*435 * 820mm
Product Volume: 0.18CBM
Product Weight: 72KG
Mixing shaft speed: 105/180prm

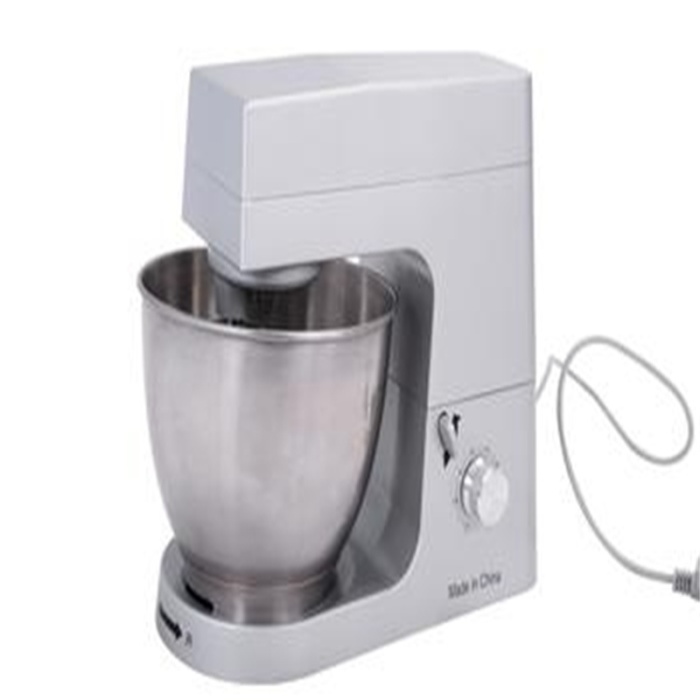

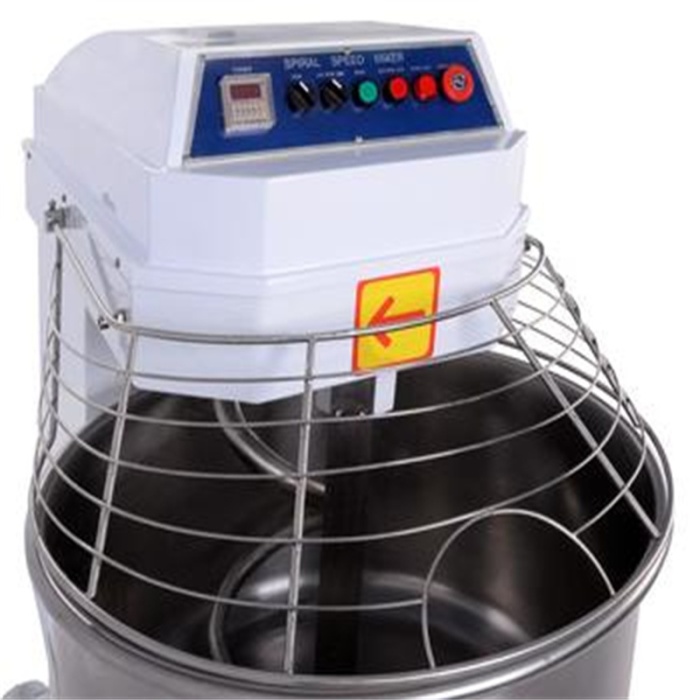

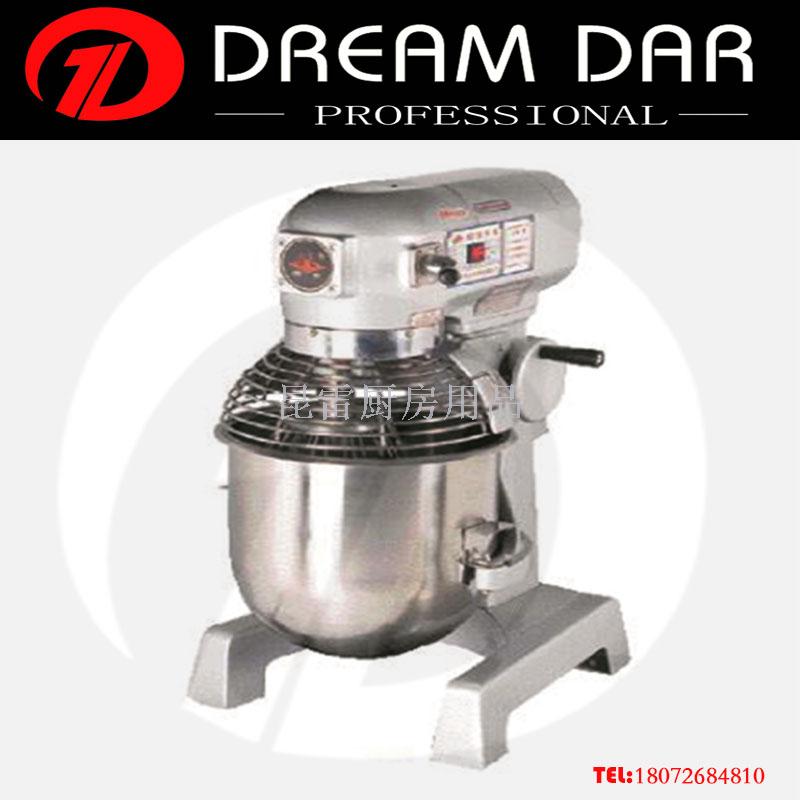

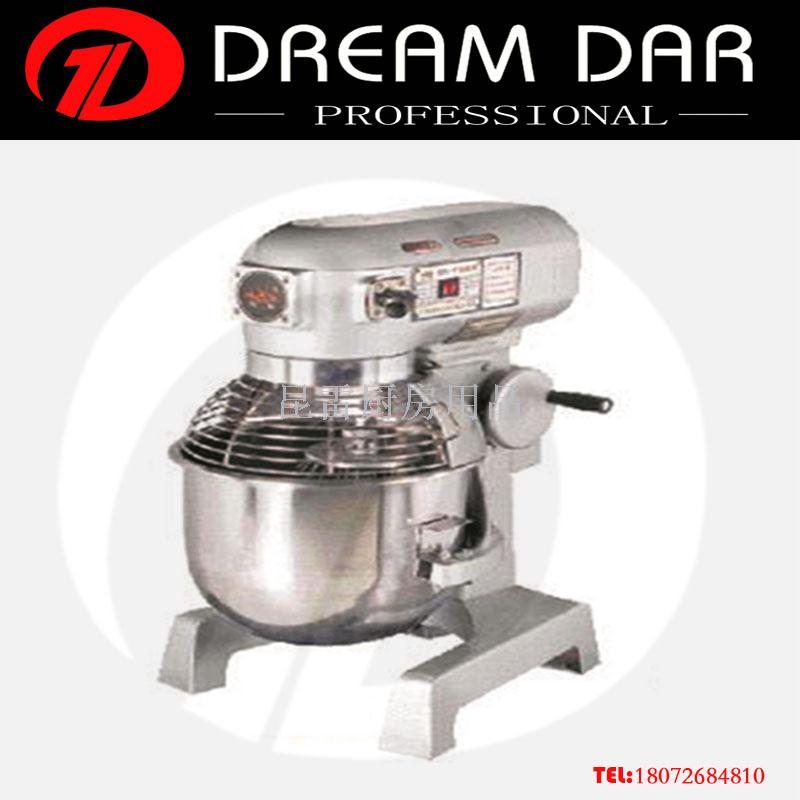

Product Display
Product Use
This machine has low noise, high working efficiency, compact structure, simple easy operation, uniform surface, maintenance is convenient wait for a characteristic the use of operating procedures
1. Stir first flour pour into the dough bucket, add 50 water to stir, stir for about 5 minutes to make it right, such as when the dough is turned together with the Dragon, sprinkle some dry flour to eliminate. When the machine works normally, the steering of the Auger should be leather Belt the Shield the arrow on points consistent. Note: When the machine is running, it is strictly forbidden to put your hands in!
2. After taking the surface and making peace, disconnect the power supply, open the cover, and pull out the latch, turn the Noodle jar 90 degrees, insert the bolt to fix the Noodle jar, and take the surface. The dough is too large, the dough can be cut into pieces and taken out by a knife. If the dough at the bottom of the Noodle jar cannot be taken out, you can reverse the dough and send it to take the surface.
Maintenance procedures:
1. Check the fasteners of each component frequently in use, and tighten them in time if they are loose;
2. The machine gear in the intermeshing region using lubricating Grease lubrication, refuel once every half a month, bearing seat there powder Metallurgy bearing bush, every work shift must inject oil to the oil Cup on the Plummer block housing twice, otherwise, the gluing of the shaft and bearing bush will be at your own risk;
3. The amount of flour should not exceed the capacity of Noodle jar when kneading, so as not to burn out motor;
4. If the dough is found to have oil stains, it should be repaired and replaced in time oil Seal.
Black wash:
1. The machine should be cleaned in time after use, so as not to affect the re-use;
2. During cleaning, the height of water added inside the Noodle jar should not exceed the lowest point of the shaft to prevent water from overflowing or flowing into the shaft hole of the Noodle jar side plate plate holder the service life is affected in the layer;
3. This machine is a antidrip-type appliance, spray is prohibited water pipe cleaning.
The customer shopping you need to know
Installation
1. Check all parts of the machine the fastener whether it is loose, if it is loose, it needs to be fastened
2. Place the machine on the level ground where others are not easy to approach
3. The grounding mark at the lower part of the machine must be reliably grounded to avoid leakage and harm
4. Users bring their own full-pole disconnection device (such as knife switch) cable line access 5. Close the knife switch and pull switch handle, make the machine test run, the machine can be put into without abnormal sound
Warning: 1. Cover the surface when kneading, and it is forbidden to put your hand into the Noodle jar and pull the surface;
2. If the electrical switch is damaged, you must find a professional electrician to replace it.
