Packaging information
CTN Szie: 40 × 30 × 30 cm
G.W./CTN:9 kg
QTY/CTN:48 pc/carton

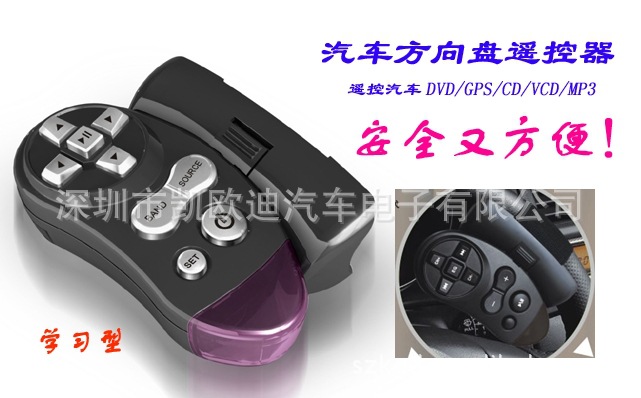

The steering wheel universal remote control
this product is specially designed to make you enjoy music while driving and ensure your driving safety. Infrared steering wheel remote control, it can copy the functions of the ordinary remote control on your car to this remote control, install it on the steering wheel of your car after copying, replace your original normal remote control, it is suitable for automobile CD car DVD car GPS and MP3 other automotive electronic products.
II: products schematic diagram
1:8 other copied keys
2: SET: copy start/ save button
3: the battery cover
4: the infrared remote control transmitter window
5: copy the work light
6: install fixed buckle
three: product Features
L humanized structural design fixed on steering wheel, the left and right steering wheels can be installed at will., greatly improve the user's operation convenience and safety.
L simple Installation, applicable to all kinds of models
L suitable for controlling all kinds of cars CD/VCD/DVD or other vehicle electronic products with remote control
L built-in high compatibility chip, you can copy the currently on the market95% the above infrared format
L up10 repeated erasable for over ten thousand times EEPROM technology, you can copy all kinds of functions on the remote control at will..
L built-in high-capacity memory, up10 the copy key, it can meet the common functions of the remote control on the car.
L copy function is simple and easy to learn, copy the accuracy is very high.
L after the copy is successful, it can be permanently saved as long as it is not manually erased..
L3V A button battery-powered, low power consumption.
four: instructions for Use
before using this product, you must copy the code on the remote control you want to replace to the product before using it., Otherwise, all buttons will not work..
Replication process.
according to the steering wheel remote control”SET” key the red indicator light will be longer and brighter the transmitting head of the copied source code remote controller is close to the transmitting window aimed at the steering wheel remote controller. Press the key to be copied from the steering wheel remote control( after pressing, the indicator light changes to slow flash.) Press the key to be copied by the copied remote control( the indicator light flashes three times and changes to the long light state.) Copy other keys and repeat the first two steps after replication has completed”SET” to save, indicator is off.
specific methods of operation:
1. First, check whether the keys of the copied original remote control work properly.
2. Replication Method( such as replication"" function keys)
2.1 long press”SET” key about3-5 seconds, in this case LED indicator glows solid becomes brighter, enter the replication status(15) if you do not press any button in seconds, it will automatically turn off.).
2.2 press the button of the steering wheel controller for a long time, such as on the silk screen"" key, at this time, the indicator light enters the slow flashing state., Indicates that the remote control enters the status of copying and receiving signals., Take the quilt in this state copy the source code of the remote control, and let the launch windows of the two remote controllers face to face1CM within, as shown in the figure below:
the steering wheel remote control copied source remote control
2.3 in slow flashing status long press the corresponding source code remote control, such"" key, about3-5 seconds, the indicator light changes from slow flash to fast flash for three times and remains on for a long time., That have been successfully copied to, red indicator remains solid, enter the status of waiting for the next replication reception again..
2.4 click another key to copy, repeat2.2 2.3 the operation of.
2.5 when copying is complete after, according to”SET” key save operation and exit, the power indicator turns off, copy the end of the process
description:
<1> the button silk screen provided by this product refers to some commonly used cars. CD/DVD the remote controller of the silk-screen printing, only provides a reference for Elasticsearch sizing, the actual key function is only related to the key function successfully copied by the user., For example, on the remote control screen the key is actually copied by the remote control.”VOL+" key features, after copying, this button is also”VOL+" key features.
<2> this product can be erased and copied multiple times, if you copy the keys of one remote control and then copy the functions of another remote control or key, the original function will be automatically cleared and overwritten..
<3> when copying is complete after, please use this remote control to operate the machine, check whether all keys have been copied successfully., If a key cannot be used normally, repeat the single key once or twice..
<4> the key that is copied during replication must be pressed long., The copied key can only be released when the indicator light of the copy remote control changes from slow flashing to fast flashing three times and then changes to long bright state..
<5> if the indicator light flashes abnormally during replication, this operation is not copied successfully., Please re-copy.
five: installation Instructions

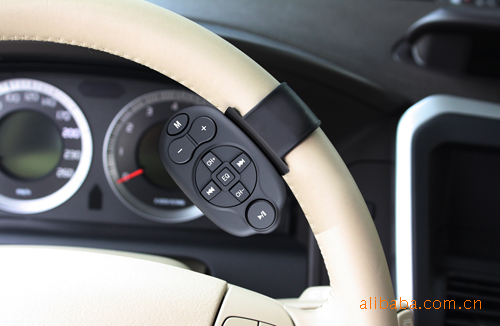

post-installation effect drawing: packaging Pictures:

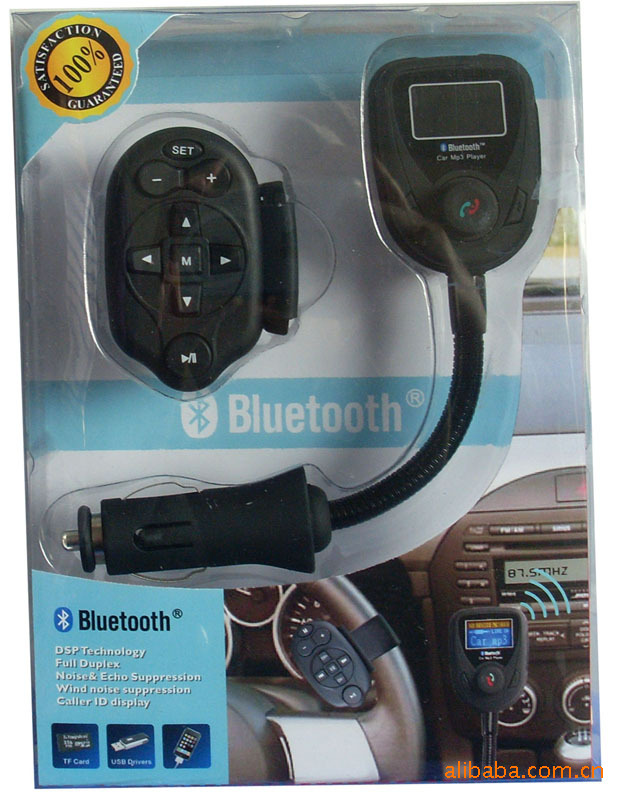

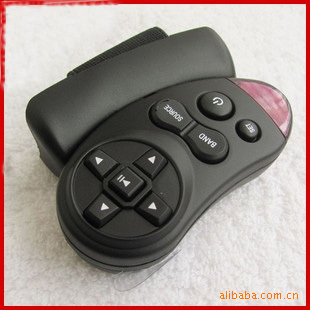

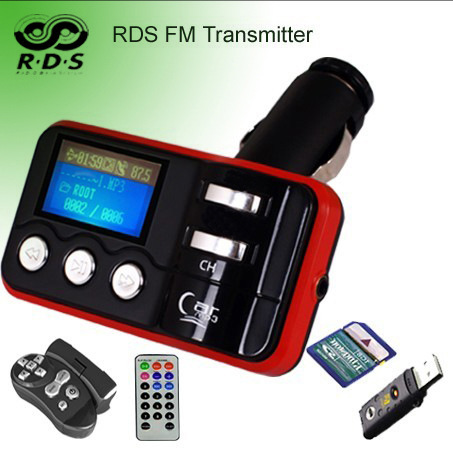

the following are pictures of related products:
';
