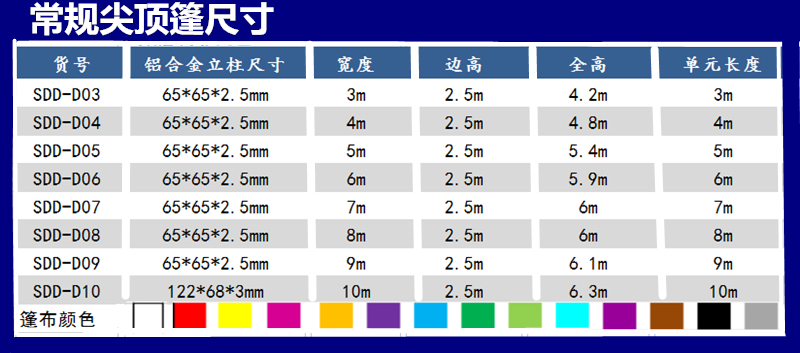

Size 1.

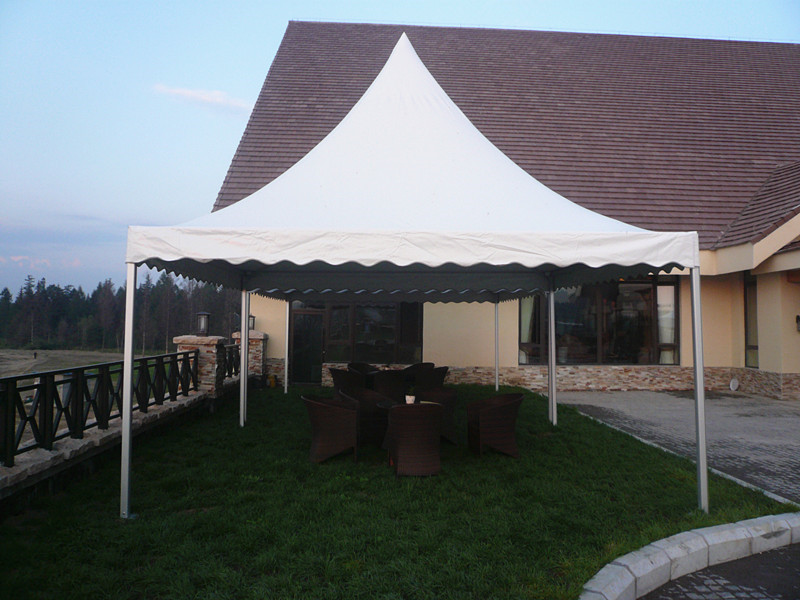

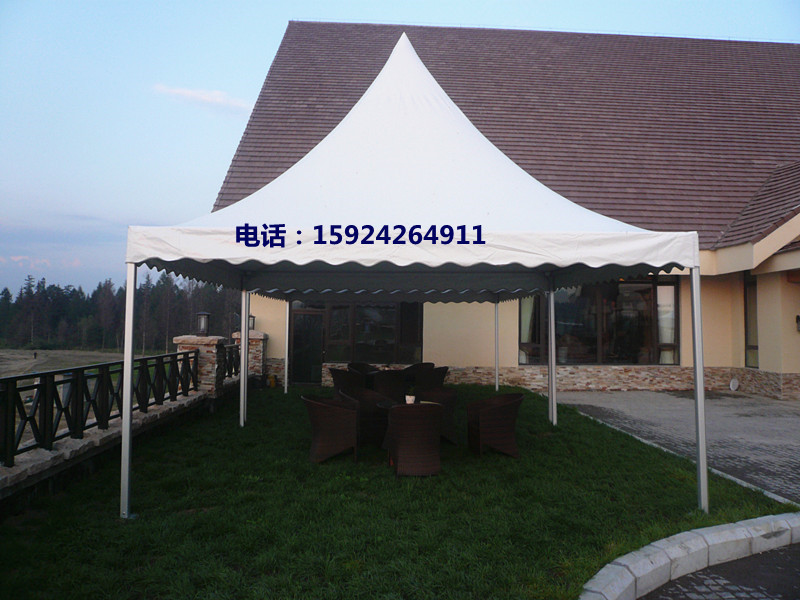

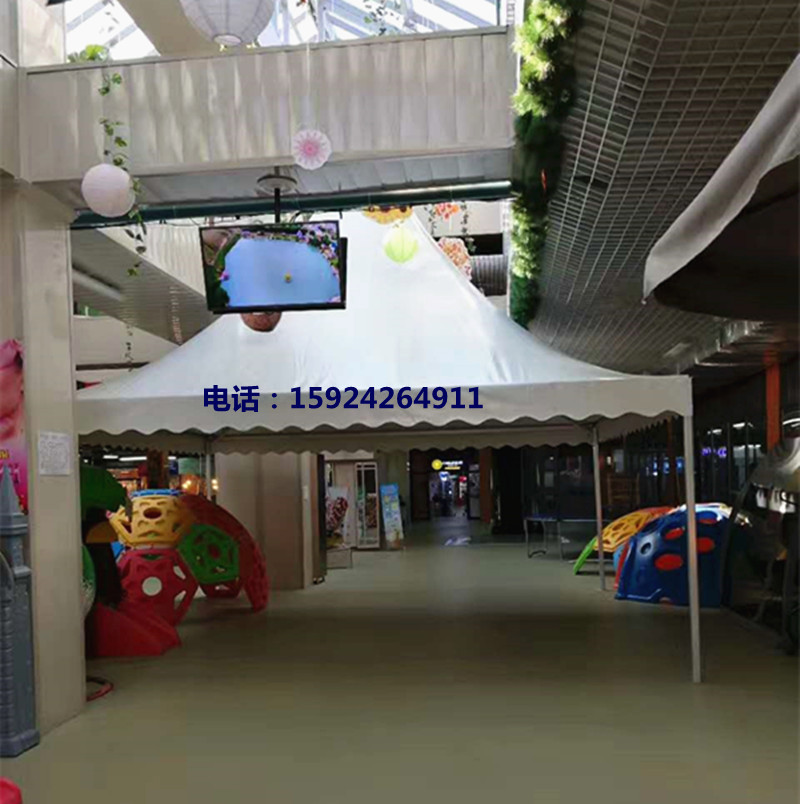

Aluminum alloy pointed roof single seat without cloth 3*3m part of the picture display

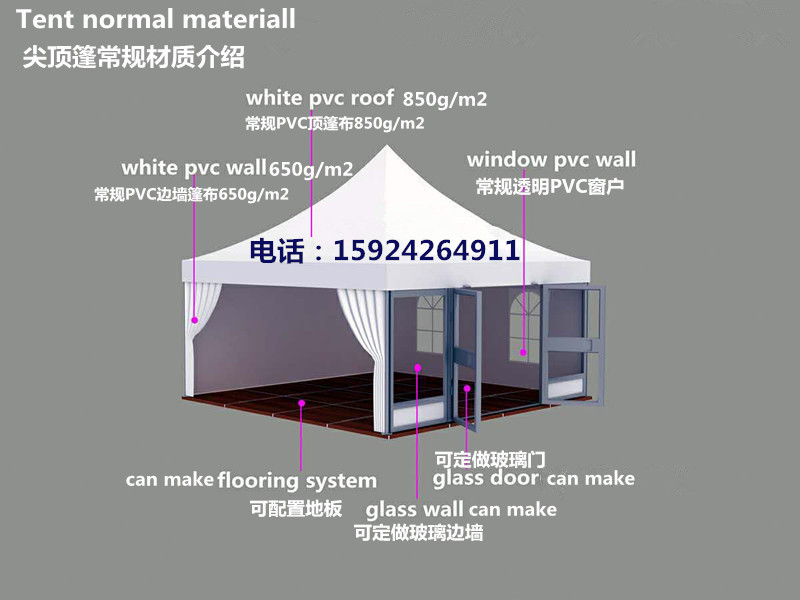

2. Material:
Main frame: high qualityGB6061 - T6Aluminum alloy, surface anti-rust treatment, gb6061-t6;
PVC material: top cloth 850 g/m2 for roof, 650 g/m2 for roof For walls, double coating, waterproof, uv resistant, strong wind resistant,
Maximum wind speed: 100km/h.
3. Specifications of canopy structureAluminum alloy andPVC tarp structure, no internal column, space 100% utilization. The span is from 3 meters to 40 meters, and there are a variety of options.
The appearance is shaped with a zigzag roof, a pointed roof, a round vault and a polygon.
4. Safety performance of awningTarpaulin is safe and fireproofClass B1 fire safety standard, the tent can reach class 8 to class 10 wind resistance under normal installation and fixed conditions.
Specifications of tarpaulin :(1) yarn count :1000 1000D
(2) : scope of heat-resistant - 30 ℃ ~ + 70 ℃
(3) waterproof: hydrostatic pressure reaches 3000mm
(4) the tensile strength: 2500 n / 5 ㎝, weft 2300 n / 5 ㎝
(5) the peel strength: 90 n / 5 ㎝
(6) elongation: longitude 15%, latitude 20%
(7) continuous combustion time 47s smoldering time =0s
(8) snow load resistance thickness: 75KG/ m2

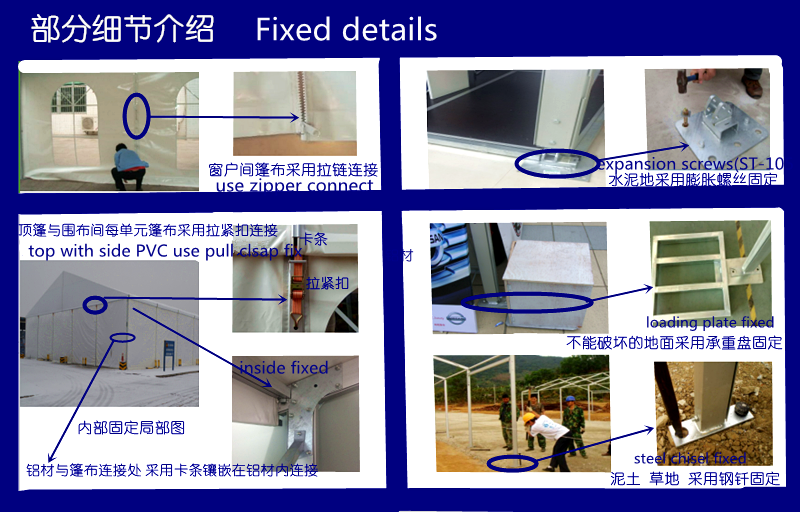

5. There are three ways to fix the ground:
1) cement floor shall be fixed with expansion screws:It is required that the thickness of cement layer should be more than 20CM and the diameter of grassland or sandy land should be 2.8cm and the length should be 60CM or 100CM.
2) floor tile or marble floor with 30*50CM or 60*60CM
3) bearing weight of steel structure and fixing with cement blocks

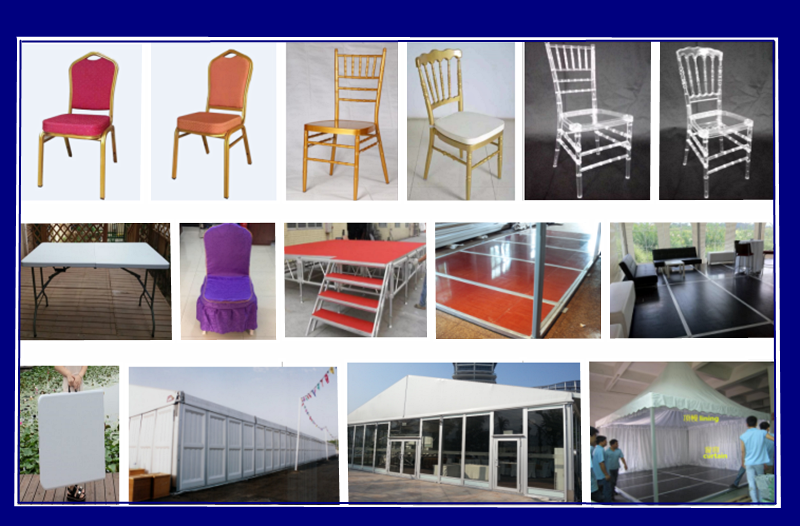

6. Other accessories:
Hotel chair
Side walls and glass Windows
Stage plate
Light and curtain
7. Packing:
1) aluminum alloy frame factory: transparent plastic film packaging, logistics: double woven bag packaging
2) professional double-layer Pvc bags are used for the top cloth and surrounding cloth for easy handling.
3) the hardware parts shall be packed in PVC bags or wooden boxes, and the cost of wooden boxes shall be calculated separately.
Tent style:
The roof tent ,
Wedding tent,
Banquet tent,
Exhibition tent,
Mobile tent,

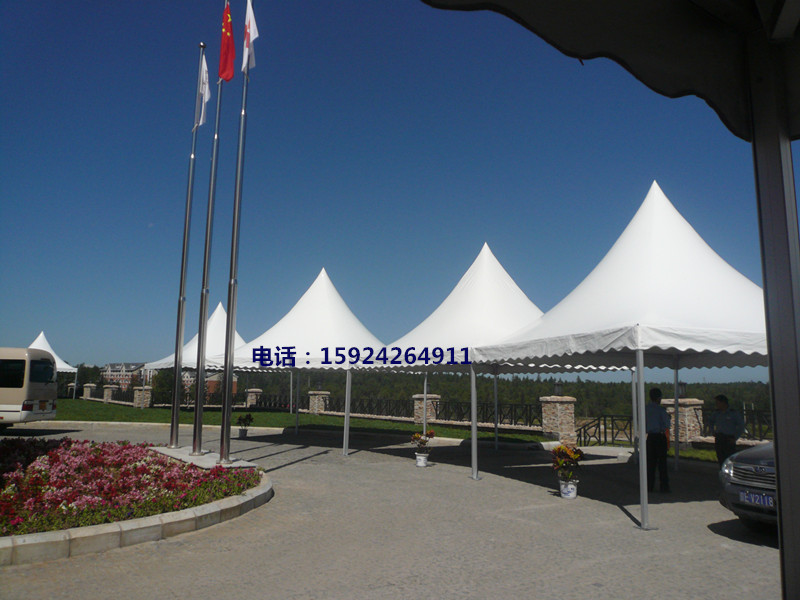

Pointed canopy ,
Warehouse tent
Curved canopies,
Hexagonal canopy
The other two
