Main functions:
- free real-time tracking, GSM/GPS mode positioning, the positioning accuracy can reach to 5 meters;
- 1000 Ma large capacity battery, a charge of standby 240 hours;
- compact configuration, high quality nylon pet collar;
- electronic fence, overspeed, low battery alarm, voice monitoring.
- free tracking platform, computer, mobile phone client IOS/, Android APP, WeChat.
- users can directly download the mobile phone client or landing platform input device on the back of the ID number as the user name, the initial password is: 123456
- six available
1. .
This product GSM/GPRS network and GPS satellite positioning system based on, locate and monitor remote targets by SMS or Internet, is the most advanced technology of GPS and AGPS. Please use the double location, or mobile Unicom GSM card, the use of GPRS platform to open flow.
2. SIM card placed
Note: card must be installed after the boot, if the boot card installed, then use must be shut down after a reboot.
open soft plug, insert the GSM card mobile phone card, pay attention to the direction of the plug in.
Start equipment 3.
use the locator positioning steps:
Note: equipment into the outdoor will have a satellite signal, if there is no indoor satellite signal, showing the location of the last position.
the equipment used in standard SIM card, if your card is Micro SIM card, please use the card.
equipment enters sleep, wake up wake can use key equipment.
1. Unicom or mobile GSM mobile phone card into the device, the device automatically turned on the lights. Using a mobile phone call in mobile phone locator card number, if the tip is busy or not convenient to answer, the device has read card, everything is normal.
Card number 2. send gprs123456 to inside the equipment.
reply GPRS after OK lights will flicker, the satellite signal received GPS locator, the blue light will flash blue and green light; if the flashing, then connect to the server locator positioning success.
Blue, green light flashing 3. locator, you can query the locator position, query text messages, WeChat, APP, mobile phone website four kinds of query
The use of 3.1 mobile phone APP positioning
1. Android mobile phone: scan two-dimensional code select Android download and install software to the phone.
: 2 Apple mobile phone to scan two-dimensional code iPhone to download and install software to mobile phone, or in store search "TKSTAR" to download and install the mobile phone.
3 select the lower right corner of the IMEI on the "
platform address: 2.tkstargps.net
IMEI: IMEI paste cover equipment
password: 123456 (default login can modify the password )
The use of 3.2 positioning platform
1 open URL: 2.tkstargps.net, select Chinese language
2 choice: the license No. /IMEI "
car number /IMEI number: for the equipment cover posted IMEI
password: 123456 (default login can modify the password )
3.3 uses the WeChat positioning
1 WeChat search public account add "YINGSHIJIE" or scan the QR code add.
2 after adding WeChat according to instructions binding equipment, you can query the location to send 123.
For example: @4109000001#123456
3.4 use the short message location
sends G123456# to the equipment inside the phone number, will receive a latitude and longitude information Google link
The 4. instruction list
Note that the 1 language is set to Chinese, dial telephone equipment only wake-up device does not reply sms.
2. alarm information is sent to the master number, no master number alarm information sent to the platform only.
3. if you do not reply to the call location information, operators may be intercepted, you can send G123456# SMS positioning or use the platform WeChat positioning.
4. time sleep mode using time can reach about 12 days, about 1 days time shaking dormant -12 days, closing the sleep mode use time is about 1 days; the equipment into dormancy, GPS and GPRS are all closed, need to wake up (wake starts working method: make a call or send any information or instructions, according to the equipment the key, please) according to their use to set the sleep mode, the factory default time dormancy
5 time dormancy is a single positioning mode, vibration of dormancy and dormancy is close continuous positioning mode.

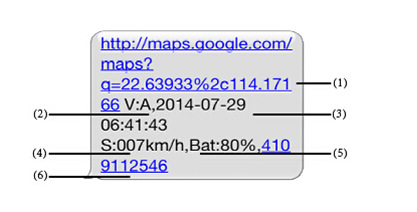

4. Description: SMS reply
- Google link: Google map, mobile phone can be used on the Google map or High German map open
- V:A/V:GPS signal, A is GPS signal, V is GPS without signal
- 2014-07-29 06:41:43 positioning time, the default time in London, Beijing time texting settings: timezone123456 8
- S: 007km/h: Speed, the speed of the mobile device
- Bat:80% battery, the range of 5%-100% to 40%, when a low power alarm.
- 4109112546: Device IMEI number, use this number to log on to the web site or APP.
5. notes
There will be only 1 outdoor GPS signal, using GPS positioning.
confirmed 2 mobile phone cards, phone, SMS, GPRS Internet access.
3 sure there is enough balance.
4 confirmation has opened the caller and close call transfer.
5 for the first time, please charge more than 3 hours.
6 GSM mobile phone card inserted correctly.
7 do not disassembly equipment.
